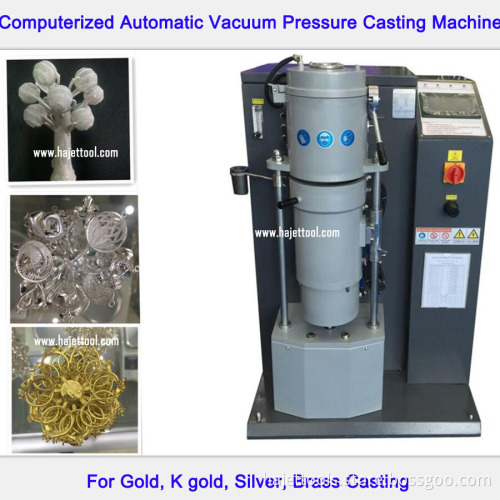

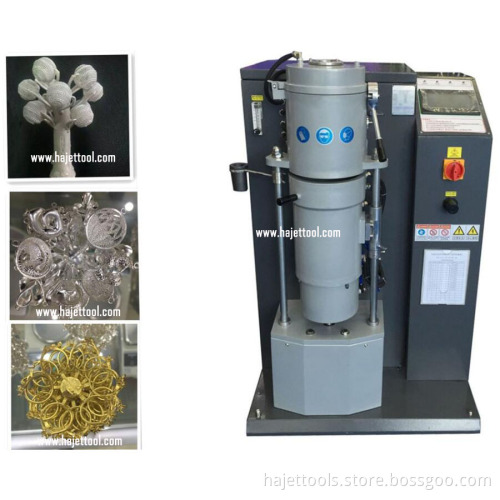

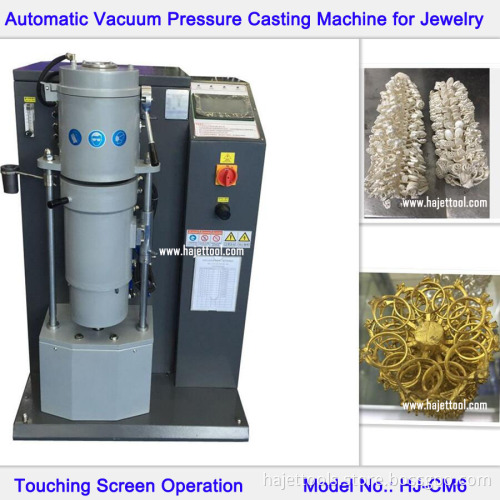

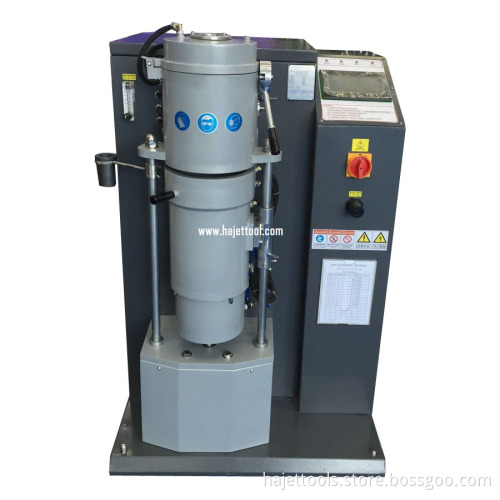

Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
  • Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
  • Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
  • Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
  • Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
  • Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine
Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine

Top Quality Gold Casting Machine Jewelry Tools and Machine Automatic Vacuum Pressure Casting Machine

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB
Delivery Time:
7 Days
Transportation:
Ocean, Land, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB
Transportation: Ocean,Land,Air
Product Description
Product Description



Main Parameters:

Power Supply: 380V 50Hz, 3 phase
Power Input: 15KW
Vacuum speed: 760mmHg,15L/second
Melting speed: 3-5 minutes
Max pressure: 2500hps
Capacity: 2.4kg(18K gold)
Suitable for K-Gold,Gold, silver, copper
Casting item size: 127*235mm
Cooling water: water chiller or tap water
Outside size: 80x90x130cm
Weight: 155kg

Features:

1. With PID temperature control system, max temperature 1450°C, temperature tolerance  ±2°C.
2. Strong electromagnetic stirring to ensure metal even with color.
3. Automatic control and induction heating, high intelligent, fully auto or semi auto is for option, Chinese and English for option.
4. With more than 50 memory programs, you can check and change parameter settings at any time, your casting quality will be improved. With various casting modes for option.
5. Whole casting process can be visually seen, air pressing lock system, equipped with safety valve to ensure safety.
6. Both melting and casting are done under vacuum condition, maximally control oxidation.
7. Casting cylinder goes up and down automatically which helps cast items to be taken out easily.
8. Various size casting cylinder is for option.
9. Big casting capacity with 2.4kg 18k gold.
10. With various alarm system, the machine will stop working immediately to protect it if any error occurred.
11. Compact design, small size.
12. Beading machine is for option.
13. Unique casting cylinder separated from vacuum device to reduce bubble to minimum.
14. With Chinese and English panel which can be adjustable, perfect combination of traditional workmanship and advanced technology.


cifactory views 2factory views -1 efforts to effectively improve the casting to be fully filled. Cast pneumatic cylinder automatic landing capabilities, very easy to place and remove the casting. Intuitive panel design allows the operator to complete every single production process, simple operation flow easily grasp.

factory vews 3
