P6 curved led display video wall
-
USD11601-0 Square Meter
-
USD1270≥1 Square Meter
- Payment Type:
- L/C, T/T, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20-30 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen, Guangzhou, Xianggang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 500 Piece/Pieces per Month |
| Supply Ability: | 500 Piece/Pieces per Month |
| Payment Type: | L/C,T/T,Money Gram,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,CQC,ISO9001,EMC,FCC |
| HS Code: | 8531200000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen,Guangzhou,Xianggang |

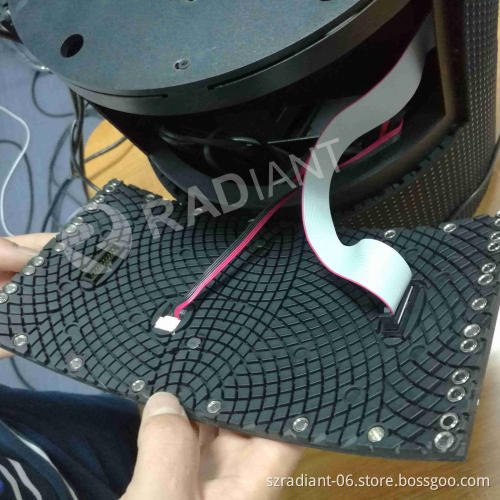

FLEXIBLE LED SCREEN-NF060F
Flexible --- It is capable of being flexible, convex, concave even twisted for to be used for any indoor conventional applications.
Low cost --- Cost effective and high performance.
Super Thin --- It is 14mm depth without power supply backside screen.
Lightweight --- 0.52kg/1.14lbs per tile to save labor and transportation.
Low heat --- Puts power supply Max 20m away and keep screen lower heat with screen' long lifespan.
Integration System –- Separate power supply system and data transmission system to central management.
Easy Installation --- Full backup magnets system to attach on any mental sheet.
Multifunction --- A small tile in hand to meet your Do-it-Yourself demands.
Specification
Model
No.
NF060F
Part Number
P6
Pixel Pitch
6mm
Resolution(per LED Panel)
96x48pixels
Pixel Density
2,580 per sq. foot(27,778 per sq. meter)
Pixel Density (Pixels per LED Panel)
1,152
LED Panel Size (W x H)
11.34"× 5.67"*0.28" (288mm*144mm*7mm)
LED Panel Weight
~0.86 ld (0.39 kg)
LED Configuration
SMD2020, 3-in-1 Black face LEDs
Brightness (non-calibrated)
0- 1200 nits (adjustment)
Viewing Angle (Horizontal/Vertical)
160°/160°
Color Space
92%, NTSC
Color Uniformity
95%
Contrast Ratio
2,500:1
LED Refresh Rate
1,920 Hz
Power Consumption, Maximum (watts)
20w/Tile (480w per sq. meter)
Power Consumption, Typical (watts)
8w/Tile (190w per sq. meter)
Environment /Application
Indoor; fixed
Installation, Service
Front &back
Line Voltage
100-240Volts AC, 50 & 60Hz
