Cleanroom swab for pcb / pcba / electronic

How to clean the dirt on the circuit board

At present, the circuit board cleaning is mainly conducted by ultrasonic wave. However, some components on the circuit board, such as crystal oscillator, have metal shells. After cleaning, it is difficult to dry the moisture inside the components. The principle of ultrasonic cleaning: the cleaning of flux residues is mainly completed through dissolution. Both rosin and organic acid, as well as their tin salt or lead salt, have a certain solubility in the cleaning agent, and the residue can be removed through the process of transferring from the circuit board to the cleaning agent.

Particulate pollutants: dust, cotton wool and solder balls. Solder ball is a kind of welding defect. If the vibration of equipment makes a large number of small solder balls gather on a part, it may cause electrical short circuit. Solder balls can be removed by cleaning.

Non polar pollutants: rosin resin, paraffin, anti oxidant oil used on wave soldering, and cosmetics or hand sanitizers left by operators.

Polar dirt: halides, acids and salts.

Harm of contamination on the circuit board: particulate contamination - electrical short circuit. Polarity contamination - dielectric breakdown, leakage, component/circuit corrosion. Non polar contamination - affecting the appearance, white powder spots, adhering dust, and poor electrical contact.

Cleaning method of PCB: ① Common cleaning mainly uses a single cleaning tank, and PCB to be cleaned is immersed in cleaning agent liquid for cleaning. The temperature of the cleaning agent in the ultrasonic cleaner is generally 35 ℃～ 85 ℃, and the cleaning time is 2-5 minutes. Liquid phase cleaning can be used for common cleaning agents.

Vapor phase cleaning means that the machine consists of at least three tanks, of which the first tank is hot cleaned, the second tank is cold dipped, and the third tank is boiling steam rinsed. The cleaning agent liquid in the third tank will generate steam after being heated, and the low-temperature workpiece will be cooled into a liquid drop tank after being subjected to freezing and immersion, which will result in a fairly clean workpiece. In this way, the PCB surface will be clean after being washed out in clean cleaning solution. The cleaning agent suitable for this equipment is mainly non combustible single or mixed liquid such as trichloroethylene. This is an ultrasonic cleaning equipment for PCB circuits with higher requirements.

Miraclean is a professional cleanroom swab, foam tipped swab, foam cleaning swabs, sterile cleanwipe foam swab manufacturer in China. Widely used in electronic products and circuit board industrial cleaning.

Cleanroom swab for pcb / pcba / electronic

MPS-758 is thermally bonded by double-layer polyester & light green PP handle, its cleanroom laundered foam head possesses high solvent capacity and good cushioning. It is free from organic contaminants such as silicone, amide and phthalate esters, and it features very low non-volatile residue (NVR), ion content and particle generation. MPS-758 is designed with a compact mini compressed foam head which possesses firmness and pointed tip, it is the ideal and popular swab for cleaning small slots, grooves, and right angle corners.

Features & Benefits
• Cleanroom-laundered, double-layer knitted Alpha polyester tip over rigid core
• Compact, light green polypropylene handle
• Thermally bonded head
• Soft and nonabrasive
• Excellent chemical resistance

Applications
• Cleaning with solvents such as IPA
• Sampling surfaces for TOC or cleaning validation
• Applying lubricants and other liquids
• Removing excess materials

Benefits
• Ultralow nonvolatile residue
• Low particle and fiber generation
• Good sorbency
• No contaminating adhesives
• Compatible with many solvents
• May be sterilized by autoclave

Customer's feedback:
This 100% polyester fabric increases the lifting and capturing power of particles, as small as microbes,

and offers streak-free cleaning with scratch-sensitive surfaces. This nylon-free swab is compatible with

QAC (quaternary ammonium chloride) cleaners and disinfectants.

Looking for ideal Ripid Polyester Head Swab Manufacturer & supplier ? We have a wide selection at good

prices to help you get creative. All the Pointed Tip Polyester Swab are quality guaranteed. We are China

Origin Factory of Industrial Cleaning Polyester Swab. If you have any question, please feel free to

contact us.

Miraclean Technology Co, Ltd.

Established in 2003, Miraclean Technology is a manufacturer specializing in producing Cleanroom

Products & Printers Cleaning Products. In order to meet or even exceed the industry standard,

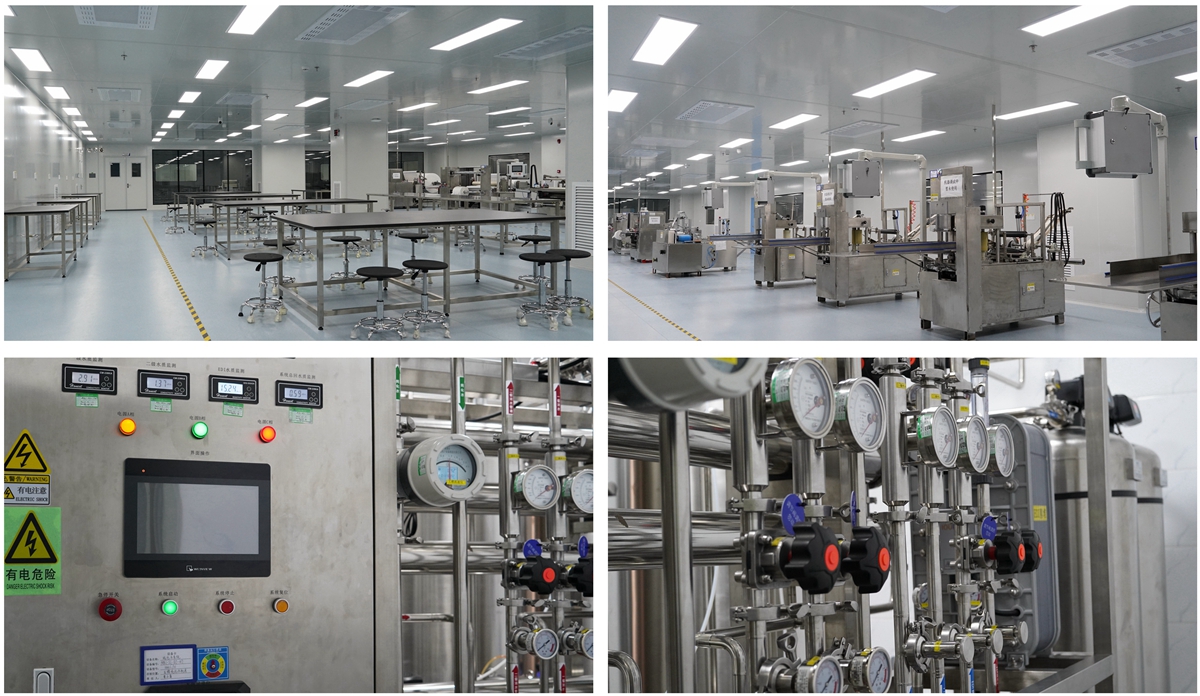

the plant is completely equipped with DI water system, sterilization equipment and purification

workshops. Miraclean is committed to providing More Reliable Cleaning products for the

contamination control industry. We are continuously striving for advancement to meet the demands

of the growing market.

Packing and Shipping

Certificate

Exhibition

Miraclean provide reliable products and custom design services to customers from all over the world, any requires about polyester cleanroom swabs, polyester tip swabs, esd polyester cleaning swabs for cleanroom industry please contact us.
