MPS-740 New Design customized non-dust Polyester Tip Swabs

New Design customized non-dust Polyester Tip Swabs

Ink jet printers seem to have this problem. If they are not used for a period of time, the nozzle will be blocked. When printing "nozzle inspection" will find that the lines are broken or even some colors do not appear at all. At this time, you will be prompted to "clean the print head". The printer at home has been used for about 2 years. Recently, it is OK to print black. Today, I suddenly thought of printing a color picture and found that none of the colors could come out. I ran "print head cleaning" for about 8 times. Black, yellow and red are all good, and blue is not at all. As for why it has been run for 8 times, it is probably better than once (the official saying is that it should not be more than 3 times a day).

In the end, I didn't know how to find an article saying that I could clean the print head with a clean cotton swab and alcohol, and found a savior.

The steps are as follows:
Find several dust-free cotton swabs, spray alcohol on the dust-free cotton swabs to make them slightly wet, then pad the dust-free cotton swabs on the card seat and place them flat without blocking the return of the nozzle;
Push the nozzle to the right to the end, and let it completely return to the card seat position;
Time 5 minutes, push out the nozzle and take out the dust-free cotton swab estimated to be black with tweezers;
Start the machine and print "Settings - maintenance - nozzle inspection" to try, OK.
The following are some problems I encountered during the implementation:

Where is the cleaning position?
This structure can be seen by lifting the cover on the printer, but the area shown in the figure is covered by the nozzle

How do I pull the nozzle out?
The original text suggests that "do not try to use barbaric methods to get the printer out of the card holder. When the printer executes" Setup - maintenance - paper guide cleaning ", you can turn it off when it comes out."

Power off is not by pressing the power off button, but by directly unplugging the power. The power off button will reset the printer system and then power off.

Must I take it out with tweezers?
The tweezers are used to keep your hands free of ink. I have washed them five times and now there is still ink on your hands.
In addition, the way I take it out is to plug in the power and turn it on. The nozzle will automatically move away. The moving speed is not fast. I take it directly.

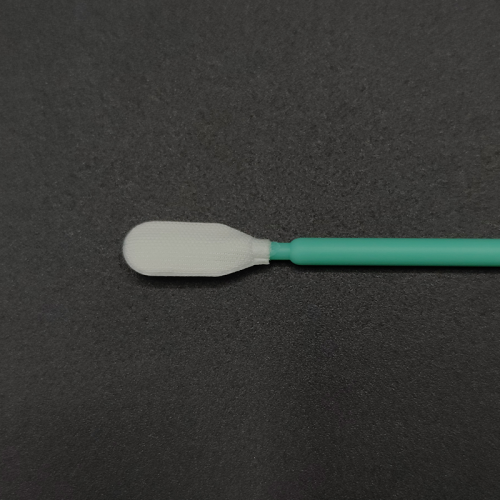

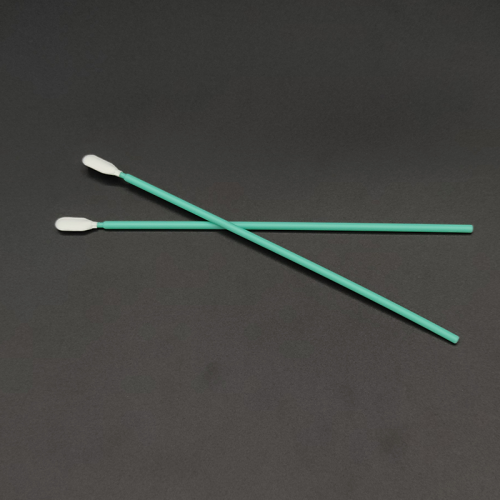

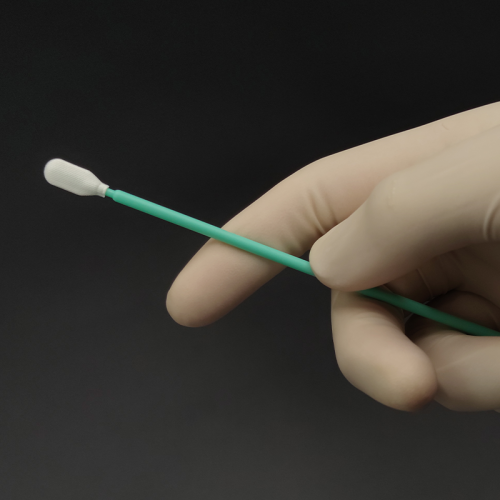

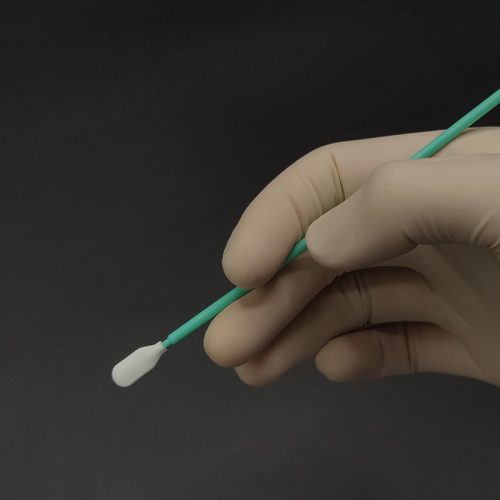

MPS-740 is thermally bonded by double-layer polyester & light green PP handle, its cleanroom laundered foam head possesses high solvent capacity and good cushioning. It is free from organic contaminants such as silicone, amide and phthalate esters, and it features very low non-volatile residue (NVR), ion content and particle generation. MPS-740 is the ideal swab for eliminating contamination on surfaces and hard-to-reach areas, and is the perfect replacement for the typical cotton swab in applications that require superior cleanliness.

Product Features
■Free from silicone, amide and phthalate esters
■Low in particles, ion content and non-volatile residue
■High solvent-holding capacity, compact and non-abrasive tip
■Compatible with most common solvents such as IPA
■Designed with large rectangular head & firm handle

Product Applications
■Cleaning with solvents such as IPA
■Cleaning large surfaces, printheads, equipments
■Remove flux residues and excess materials
