4W high power LG backlit led module
- Payment Type:
- L/C, T/T, D/P, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Yantian, Sungnag
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Productivity: | 1000000pcs |
| Supply Ability: | 1000000pcs |
| Payment Type: | L/C,T/T,D/P,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Yantian,Sungnag |
LG lens led module,high power 4W with 500lm,special lens design 170 degree with uniform illumination,5 years warranty,best for 8-20cm depth signs at airport,metros,banks and shopping mall.
Warnings:
Disassembling or modifying the product is forbidden.
Installation with power on is forbidden.
Any organic solvent chemical is forbidden.
Acidic or alkaline adhesive is forbidden when install, neutral glass cement could be used for installation purpose,
make it drying in open environment for four hours.
Isolation and corrosion prevention on all wiring points and wire ends.
Make sure the power wire is thick enough and ensure the voltage and connections are connected correctly before
power on.
This product

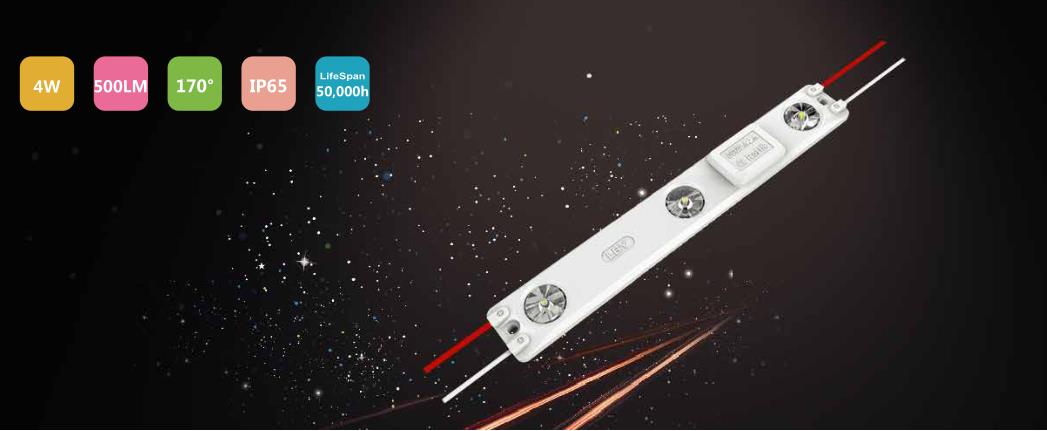

LG 4W high power backlit lens led module,170 degree with uniform illumination,4W with 500 lumens,12/15 pcs max in series connection,5 years warranty,light up more than 50000 hours with any problem,your signage partner for over 15 years in China.
Application

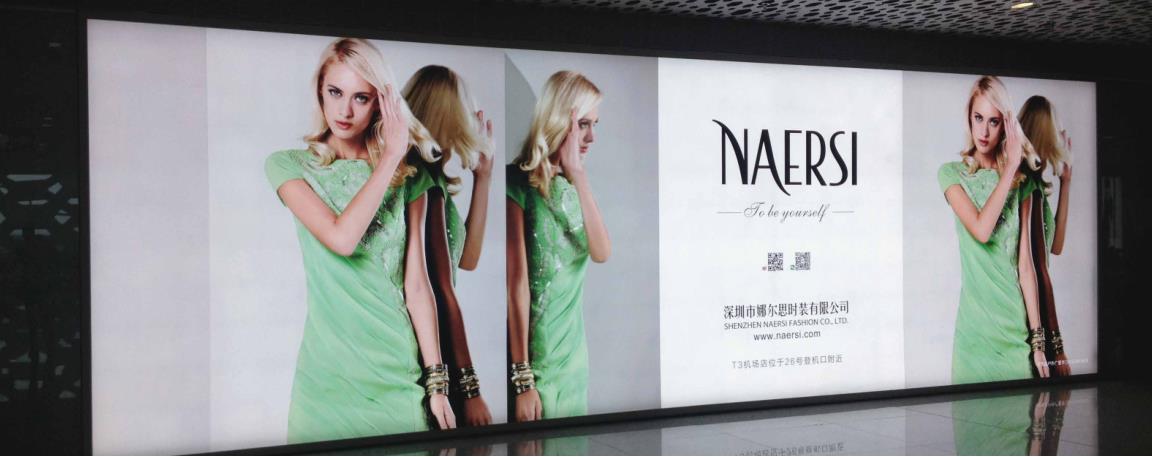

- Best for 10-20cm depth single-sided light box at airports,metros, banks, buildings and shopping malls, etc.

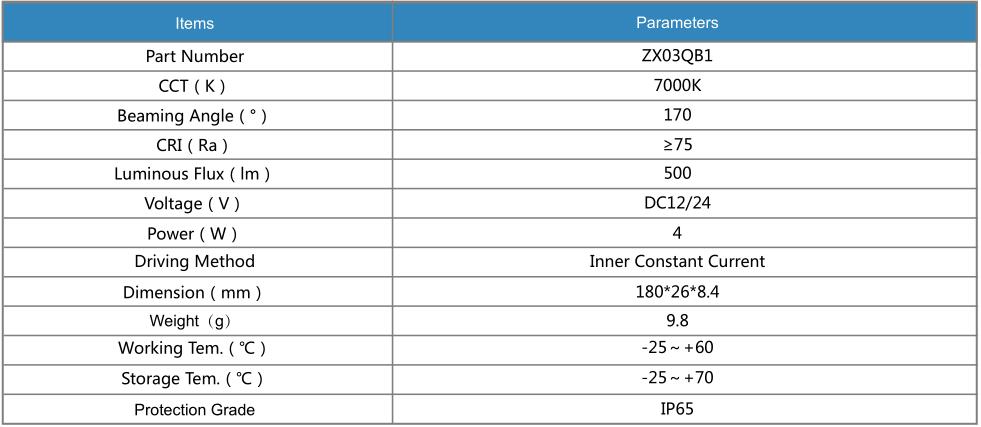

ZX03QB1 module Parameters:

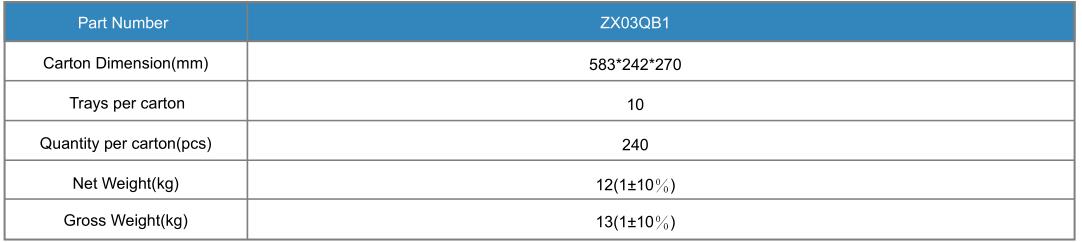

Packing information:
Due to the packing manner difference, please subject to the original products in case of discrepancy found between the picture and actual product.
Warnings:
Disassembling or modifying the product is forbidden.
Installation with power on is forbidden.
Any organic solvent chemical is forbidden.
Acidic or alkaline adhesive is forbidden when install, neutral glass cement could be used for installation purpose,
make it drying in open environment for four hours.
Isolation and corrosion prevention on all wiring points and wire ends.
Make sure the power wire is thick enough and ensure the voltage and connections are connected correctly before
power on.
This product should be used in a sign, do not expose it in opening site.
Installation, maintaining should be done by professional staff.
12 pcs in a serial connection maximum.
The power wire between power supply and module should be less than two meters to keep the same brightness
on all parts.
