Edge Lighting LED Module for advertising light box
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1000 Others
- Min. Order:
- 1000 Others
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen Shekou, Shenzhen Yantian, Shenzhen Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China. |
|---|---|
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen Shekou,Shenzhen Yantian,Shenzhen Sungang |
Adge Light High Power LED Module, best for double side light box. Aluminum PCB Board with better heat disspation. High power, high lumens, much brighter.
Features:
a. Sourced by high output SMD3030, good color conformity and no spot.
b. 99.99% gold thread, pure copper bracket coated with silver.
c. SDCM≤5 each BIN.
d. Special lens design, 10*65°beaming angle with even light.
f. Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock. 20 pcs Max. in a series connection.
g. CE, ROHS and UL certified.
Basic Parameter:
|
Items |
Parameters |
|
Part No. |
ZF01BB3 |
|
Voltage |
12V DC |
|
Power (W) |
1.32W |
|
Beaming Angle (°) |
10x65° |
|
Luminos Flux (lm) |
125lm |
|
Dimension (mm) |
43x23x11.6mm |
|
CCT (K) |
PW |
| CRI (Ra) |
75 |
| Driving Method |
Inner Constant Current |
|
Weight (g) |
9.8 |
|
Working Tem. (℃) |
-25 - +60 |
|
Storage Tem. (℃) |
-25 - +70 |
|
Protection Grade |
IP67 |
Application:

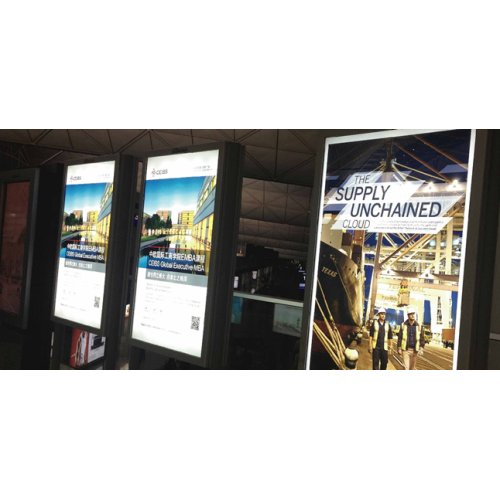

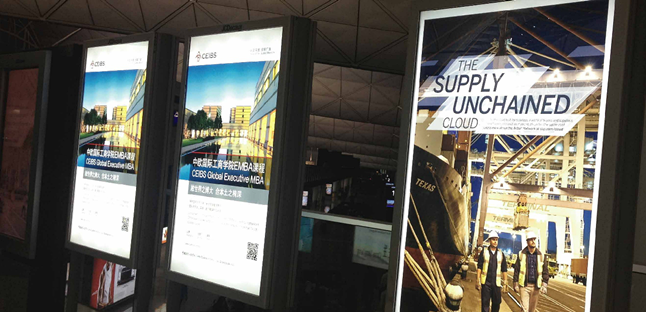

Best for 15-30cm depth double-sided light box or 8-20 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls etc.
Dimension:

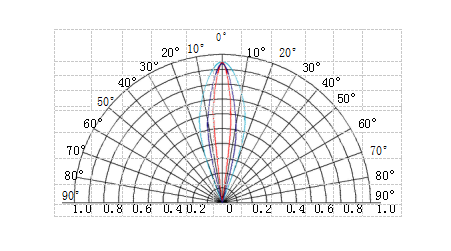

Beaming Angle:

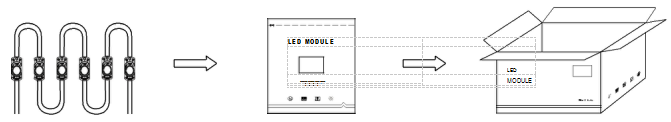

Packing:
20pcs per string 5 String 100pcs per bag 10 bags 1000pcs per carton
|
Part No. |
ZF01BB3 |
|
Carton Dimension(mm) |
490x450x220mm |
| Quantity per carton(pcs) | 1000pcs |
| Net Weight(kg) | 8.3(1±10%) |
| Gross Weight(kg) | 9.5(1±10%) |
Remark: Due to the packing manner difference, please subject to the original products in case of discrepancy found between the picture and actual product.
