2835led double row strip
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Meter
- Min. Order:
- 1 Meter
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen Port., Shekou, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China. |
|---|---|
| Productivity: | 100000m |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | UL,ISO,CE |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen Port.,Shekou,Yantian |

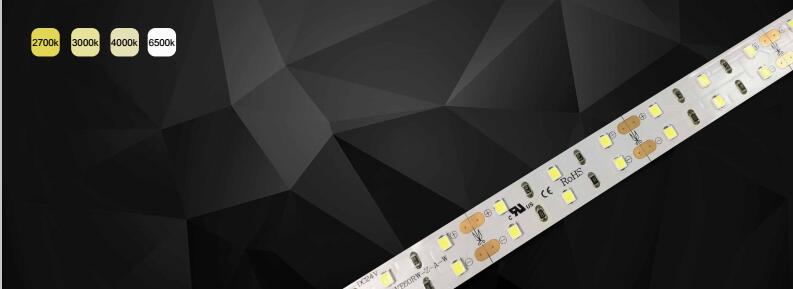

Double row led strip has been widely used in decoration together with aluminum profile.Our 2835led double row strip is with high light efficiency and color conformity. 120led/m and 240leds/m are available and have different colors availbale. 8mm in width for IP33 and 10mm for IP68. It is with double layer rolled copper FPC and 3M 300LSE tape attached. DC24V could provide stable light, no color difference from the top to the end, and we advise to connect less than 5meters when you use DC12V.
Application
- City lighting, landscape lighting, commercial lighting and house contour lighting, etc.
Part Number
Dimensions(mm)
LED Type
LEDs/m
Voltage(V)
Power(W/m)
LM/M
CCT/K
IP Grade
SEC0LAB
5000*8
SMD 2835
120
DC12/24
15
1800
6500
IP33
SEC0JAB
5000*10
SMD 2835
120
DC12/24
15
1800
6500
IP68
Packing
Packing specification
Part Number
Carton dimension(mm)
Bags per carton(pcs)
Quantity per carton(m)
Net Weight(kg)
Gross Weight(kg)
SEC0LAB
495*450*215
40
200
4.5
7.5
SEC0JAB
495*395*290
40
200
8.0
11.0
Warning
- Disassembling or modifying the product is forbidden. Installation with power on is forbidden.
- Any organic solvent chemical is forbidden.
- Isolation and corrosion prevention on all wiring points and wire ends.
- Make sure the power wire is big enough and ensure the voltage and connection are all correct before power on. Installation, maintenance should be done by professional staff.
- 5M in a serial connection maximum for DC12/24V strips.
- The power wire between power supply and LED strips should be less than two meters to keep the same brightness on all parts.
