Compatible Huawei ZTE Fiberhome 1GE GPON ONU
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 2 Days
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB |

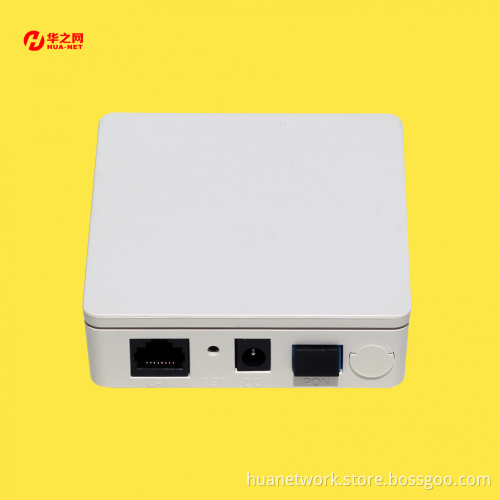

HG911(SFU) is a mini GPON optical network terminal device , which applies to pure broadband access.It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45)interfaces. Supports the technology of layer 3 router function with PPPOE/DHCP/Static IP,and it`s easy to maintenance and manage.It can be applied to FTTH/FTTP access application for resident and business Users. and it is fully compliant to technical regulations such as ITU-TG.984.x technical requirment of GPON Equipment.Remote service distribution, fault diagnosis and performance statistics can be realized by OMCI, which effectively reduce the operation and maintenance cost.
Technical items
Description
Optical property
Upstream PON interface
1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps
Wavelength
Tx 1310nm, Rx 1490nm
Optical output power
-1~+4dBm
Receiving sensitivity
<-28dBm
Farthest distance
20km between OLT and ONU
Optical interface
SC/UPC connector
Downstream LAN interface
1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
Ethernet function
Support IEEE802.1Q VLAN
Support speed rate inhibition of broadcast packet at ONU
IEEE 802.3X flow control
Support 16 multicast addresses at each LAN port
Security strategy
Support AES-128,data encryption for both upstream and downstream
Support dynamic update of key
Management maintenance
Centralized OLT management based on OMCI
WEB,CLI
Upgrade software remotely
Hardware information
Indicators
4 indicators, for status of power supply, PON port and 1 Giga-Ethernet port.
DC power supply
+12V, external AC-DC power adaptor
Power consumption
≤2.5W
Operating condition
Operating temp: -5~+55℃
Storing condition
Storing temp: -30~+60℃
Dimension
100mm*87mm*25mm(length*width*height)
Net weight
0.24Kg
Operating humidity:10~90%(non-condensed)
Storing humidity:10~90%(non-condensed)
