Manipulator dedicated gear motor with encoder
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |
Electric machinery is an electromagnetic device that converts or transmits electric energy according to the law of electromagnetic induction.
The motor is represented by the letter M (the old standard is D) in the circuit. Its main function is to generate the driving torque. As the power source of the electric appliance or various machines, the generator is represented by the letter G in the circuit, its main The role is to use mechanical energy to convert into electrical energy.
Motor For Safe Lock Speed range: 32~2500 RPM
Dc Motor For Safe Lock Overall dimensions: 12.0 x 10.0 x 25.0mm
Our engineering department can provide special designs for different shaft length .

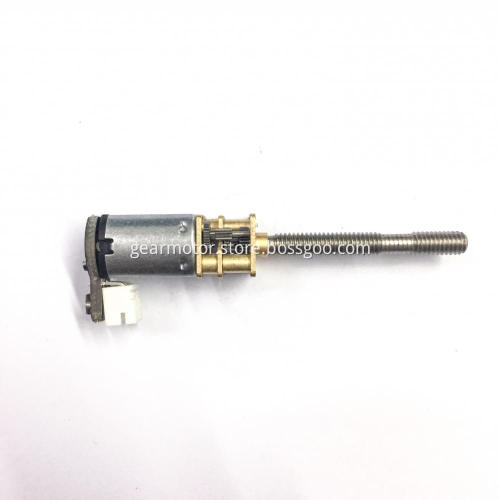

(The figure below is a customized special shaft,
If you have any need, we can customize different output shaft)
The following is one of the parameters about the Gear Motor For Safe Lock :
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
N20AGB298-06350 |
6.0 |
33 |
0.020 |
25 |
0.062 |
24.01 |
245 |
0.06 |
98.0 |
1.0 |
0.19 |
|
N20ABG380-06350 |
12.0 |
52 |
0.035 |
47 |
0.080 |
44.1 |
450 |
0.22 |
225.4 |
2.3 |
0.36 |
|
N20AGB50-07250 |
7.2 |
340 |
0.045 |
280 |
0.110 |
9.8 |
100 |
0.29 |
49 |
0.5 |
0.45 |
|
N20AGB100-07280 |
4.5 |
95 |
0.030 |
85 |
0.050 |
5.98 |
60 |
0.05 |
29.4 |
0.3 |
0.25 |
|
N20AGB298-07280 |
6.0 |
40 |
0.030 |
35 |
0.080 |
29.4 |
300 |
0.11 |
147 |
1.5 |
0.35 |
|
N20AGB298-08230 |
6.0 |
52 |
0.040 |
45 |
0.120 |
39.2 |
400 |
0.18 |
176.4 |
1.8 |
0.52 |
|
N20AGB30-08195 |
6.0 |
620 |
0.045 |
540 |
0.100 |
3.92 |
40 |
0.22 |
19.6 |
0.2 |
0.58 |
|
N20AGB30-08220 |
6.0 |
580 |
0.050 |
480 |
0.130 |
5.88 |
60 |
0.30 |
29.4 |
0.3 |
0.55 |
|
N20AGB298-09168 |
6.0 |
70 |
0.050 |
56 |
0.200 |
47.04 |
480 |
0.27 |
235.2 |
2.4 |
0.80 |
|
N20AGB298-11115 |
5.0 |
50 |
0.070 |
45 |
0.170 |
34.3 |
350 |
0.16 |
176.4 |
1.8 |
0.85 |
|
N20AGB30-12105 |
6.0 |
1100 |
0.100 |
850 |
0.520 |
14.7 |
150 |
1.31 |
73.5 |
0.75 |
2.10 |
|
N20AGB50-12105 |
6.0 |
650 |
0.100 |
500 |
0.520 |
24.5 |
250 |
1.28 |
117.6 |
1.2 |
2.20 |
|
N20AGB298-13100 |
3.0 |
60 |
0.080 |
50 |
0.230 |
49 |
500 |
0.26 |
245 |
2.5 |
1.15 |
|
N20AGB50-1390 |
4.2 |
540 |
0.130 |
360 |
0.620 |
24.5 |
250 |
0.92 |
78.4 |
0.8 |
1.78 |
|
N20AGB50-1470 |
3.0 |
480 |
0.140 |
380 |
0.440 |
11.76 |
120 |
0.47 |
58.8 |
0.6 |
2.1 |
|
N20AGB100-09168 |
6.0 |
205 |
0.070 |
170 |
0.200 |
24.5 |
250 |
0.43 |
117.6 |
1.2 |
0.85 |
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
(This is the normal output shaft drawing):
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
