16mm 050 miniature dc motor slowdown
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |

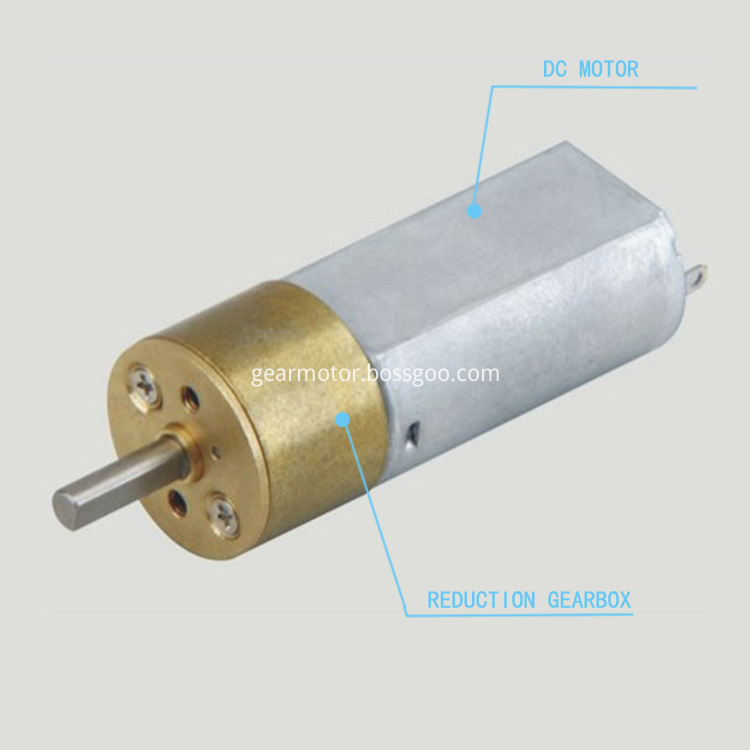

Reducer application(Gear Reducer Motor):
1. The speed reducer, it is often said that the speed change gear box.
2. Change the direction of transmission, for example, we use two sector gear can transfer force perpendicular to another axis of rotation.
3. Change the rotational torque. Under the condition of the same power, the faster the speed of gear, shaft torque of the smaller, vice versa.
4. The clutch function: we can separate the two meshing gears, achieve the goal of separate the motor and load. Such as brake clutch, etc.
5. Power distribution. We can use an engine, for example, through the gearbox spindle drive multiple from the axis, so as to realize the function of an engine to drive more load. The working principle of gear box:
Is used for variable speed gear box, gear motor reducer or more is through the gear, the principle of a namely a big gear with small gear or pinion gear
Can be seen from the above introduction: gear motor than once chosen speed ratio, can't change, reducer can change the transmission speed and direction.

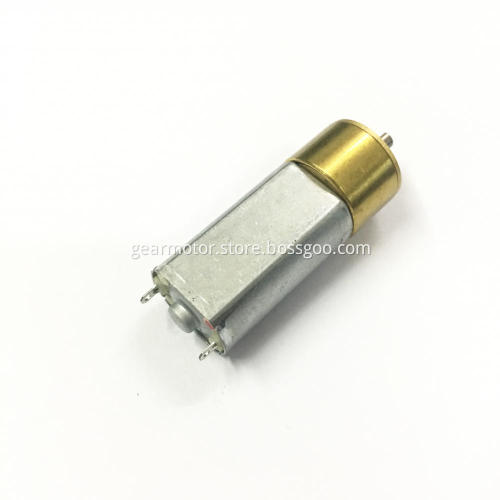

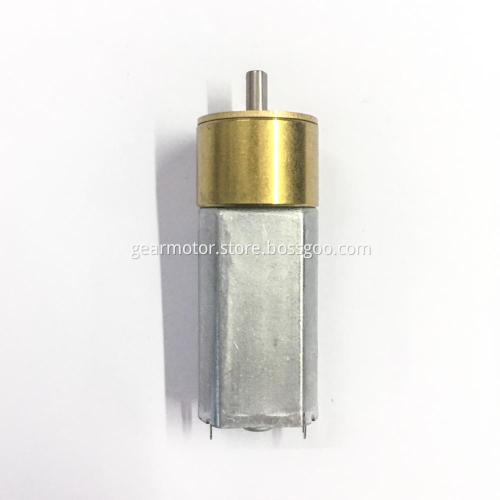

16mm 050 miniature dc motor slowdown Product Description:
miniature dc motor slowdown Speed range: 32~2000 RPM

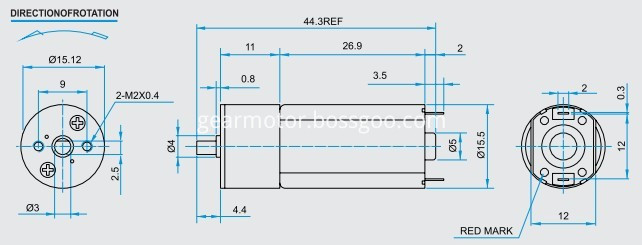

China 12V Dc Gear Motor dimensions:15.5 x 38.0mm
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.

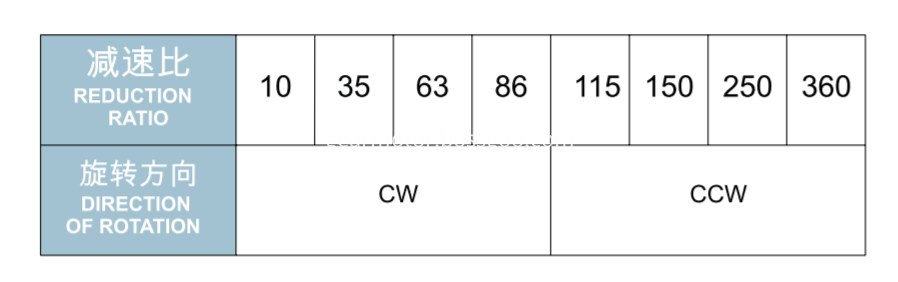

Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
Parameters in a certain range can be customized according to customer's demand
The following is one of the parameters:
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
050BGR250-07350 |
12 |
33 |
0.030 |
18 |
0.080 |
98 |
1000 |
0.18 |
372.4 |
3.8 |
0.30 |
|
050BGR360-07350 |
5.0 |
9 |
0.035 |
8 |
0.050 |
39.2 |
400 |
0.03 |
196 |
2.0 |
0.16 |
|
050BGR250-08290 |
12 |
40 |
0.040 |
35 |
0.100 |
98 |
1000 |
0.36 |
470.4 |
4.8 |
0.48 |
|
050BGR35-09250 |
12 |
340 |
0.050 |
280 |
0.140 |
19.6 |
200 |
0.57 |
107.8 |
1.1 |
0.68 |
|
050BGR35-09250 |
12 |
340 |
0.050 |
280 |
0.140 |
19.6 |
200 |
0.57 |
107.8 |
1.1 |
0.68 |
|
050BGR86-10195 |
12 |
175 |
0.080 |
145 |
0.195 |
58.8 |
600 |
0.89 |
294 |
3.0 |
0.98 |
|
050BGR20-11170 |
12 |
900 |
0.080 |
650 |
0.380 |
24.5 |
250 |
1.67 |
235.2 |
1.4 |
1.45 |
|
050BGR20-12155 |
12 |
950 |
0.100 |
760 |
0.460 |
29.4 |
300 |
2.34 |
147 |
1.5 |
1.8 |
|
050BGR150-12155 |
12 |
135 |
0.080 |
120 |
0.280 |
98 |
1000 |
1.23 |
470.4 |
4.8 |
1.32 |
|
050BGR150-13130 |
12 |
150 |
0.110 |
135 |
0.320 |
98 |
1000 |
1.39 |
882 |
9.0 |
2.5 |
|
050BGR50-13130 |
6.0 |
250 |
0.090 |
205 |
0.260 |
29.4 |
300 |
0.63 |
147 |
1.5 |
1.25 |
|
050BGR35-13130 |
6.0 |
330 |
0.090 |
240 |
0.400 |
29.4 |
300 |
0.74 |
147 |
1.5 |
1.25 |
|
050BGR20-1580 |
3.0 |
480 |
0.110 |
370 |
0.340 |
9.8 |
100 |
0.38 |
49.98 |
0.51 |
1.2 |
|
050BGR63-2050 |
6.0 |
460 |
0.275 |
400 |
0.890 |
49 |
500 |
2.05 |
343 |
3.5 |
4.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Our engineering department can provide special designs for different shaft length .
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
