FF030 With the circlip groove mini gear motor
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |
Matters needing attention when you choose and Hotel Door Lock Motor.
1, identify the dc gear motor, such as low power, large torque, rotational speed, low noise, energy dissipation, parameters such as power, performance requirements, etc.
2, there is a limit to the motor output power, the power choice is too small, if the motor load over the motor rated power output of the motor overload occurs, the power is too big, can cause economic waste, so you need to choose the dc gear motor.
3. The first selection of high efficiency, cheap, low temperature of dc gear motor, each dc gear motor product has different characteristics and use of the advantages, so be sure to master the selection principles and methods, so as to make reasonable use of the dc motor slowdown.
4, and the choice of imported or domestic, whether imported or domestic all have their own naming standards, specifications, price, after-sales service is relatively is different also, so in dc gear motor of choose and buy at the same time as a factor to consider. 5, choice of specifications, product selection, rotational speed and torque according to the actual requirements of the corresponding rating close to dc gear motor products.

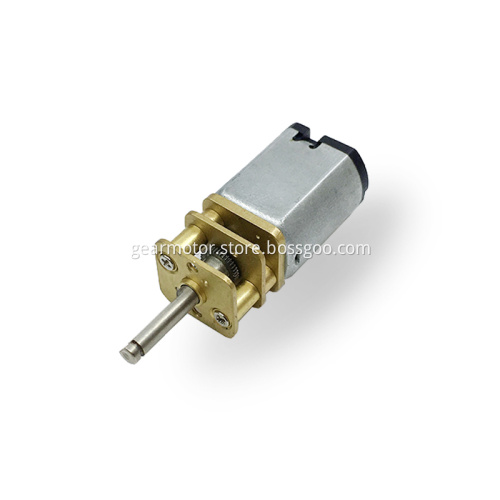

FF030 With the circlip groove mini gear motor Product Description:
circlip groove gear motor Speed range: 32~2000 RPM
FF030 gear motor Overall dimensions:13.0 x12.0 x 29.7mm
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
(The figure below is a customized special shaft,
If you have any need, we can customize different output shaft)
The following is one of the parameters:
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
030BGB250-06400 |
12 |
53 |
0.040 |
46 |
0.080 |
53.9 |
550 |
0.26 |
274.4 |
2.8 |
0.33 |
|
030BGB250-07280 |
6.0 |
28 |
0.025 |
24 |
0.060 |
29.4 |
300 |
0.07 |
147 |
1.5 |
0.24 |
|
030BGB115-08300 |
6.0 |
76 |
0.040 |
66 |
0.080 |
19.6 |
200 |
0.14 |
98 |
1.0 |
0.36 |
|
030GBB250-08350 |
12 |
60 |
0.050 |
55 |
0.100 |
58.8 |
600 |
0.34 |
411.6 |
4.2 |
0.55 |
|
030BGB35-08270 |
12 |
560 |
0.080 |
440 |
0.200 |
19.6 |
200 |
0.90 |
98 |
1.0 |
0.78 |
|
030BGB360-08250 |
12 |
58 |
0.070 |
51 |
0.155 |
98 |
1000 |
0.52 |
539 |
5.5 |
0.82 |
|
030BGB86-09230 |
9.0 |
210 |
0.060 |
180 |
0.180 |
34.3 |
350 |
0.65 |
176.4 |
1.8 |
0.88 |
|
030BGB86-09210 |
6.0 |
146 |
0.065 |
122 |
0.155 |
24.5 |
250 |
0.31 |
117.6 |
1.2 |
0.68 |
|
030BGB360-10180 |
3.0 |
20 |
0.060 |
17 |
0.130 |
49 |
500 |
0.09 |
245 |
2.5 |
0.50 |
|
030BGB360-10180 |
6.0 |
40 |
0.080 |
35 |
0.200 |
98 |
1000 |
0.36 |
441 |
4.5 |
0.88 |
|
030BGB250-11155 |
3.0 |
34 |
0.065 |
25 |
0.200 |
44.1 |
450 |
0.12 |
176.4 |
1.8 |
0.62 |
|
030BGB150-11155 |
6.0 |
120 |
0.080 |
100 |
0.230 |
49 |
500 |
0.51 |
274.4 |
2.8 |
2.2 |
|
030BGB10-1485 |
3.0 |
1500 |
0.150 |
1100 |
0.480 |
4.9 |
50 |
0.56 |
19.6 |
0.2 |
1.65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Our engineering department can provide special designs for different shaft length .
(This is the normal output shaft drawing):
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
