3v 12mm micro gear reducer motor for N30
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |

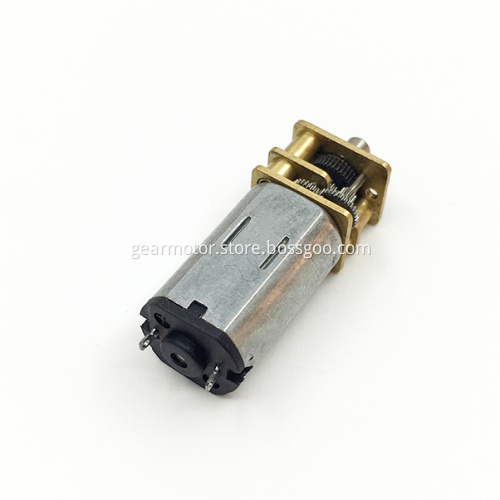

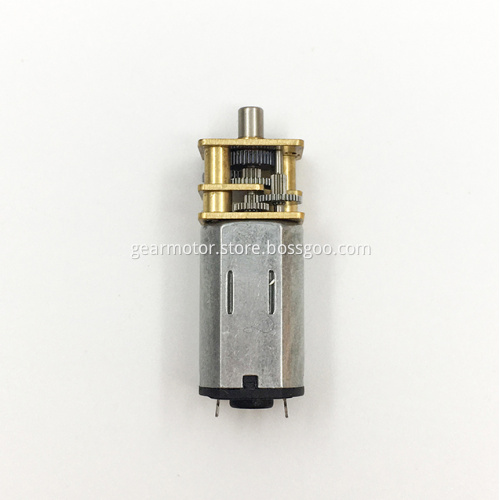

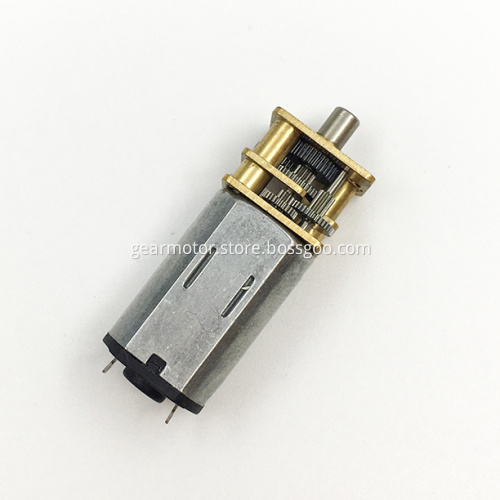

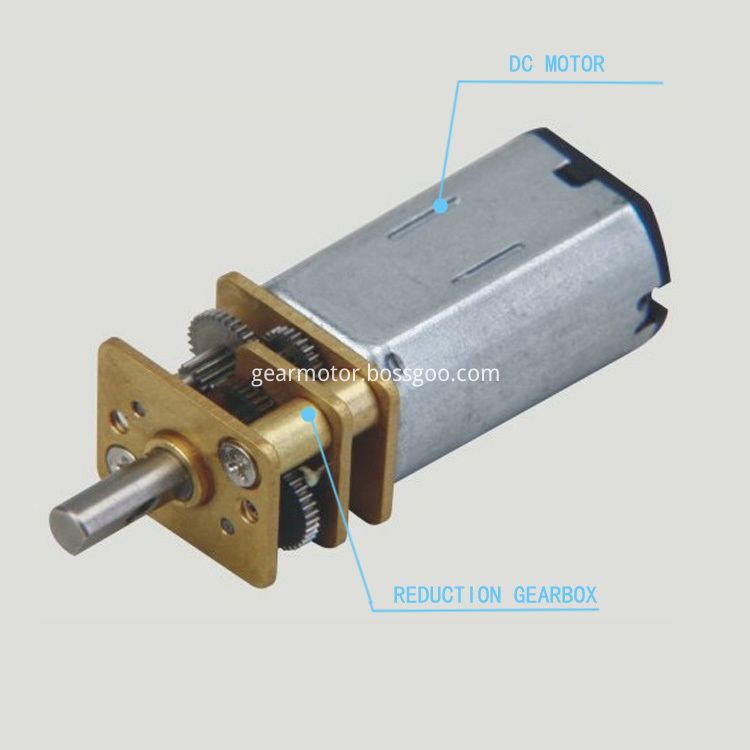

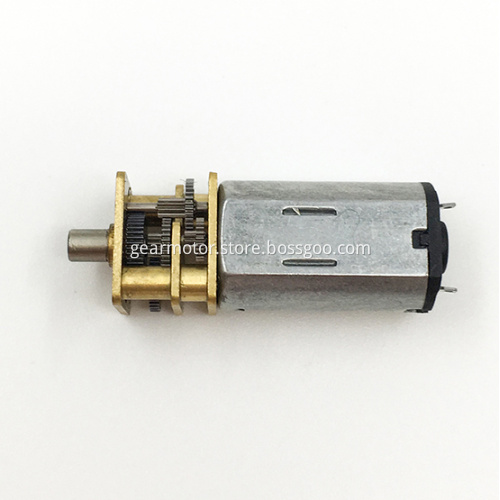

3v 12mm micro gear reducer motor for N30,with N10 gear motor, N20 gear motor were of the same series products, diameter size 12 mm, torque is bigger, a lower speed.
N30 Gear Motor Speed range: 32~2500 RPM
3v Gear Motor Overall dimensions: 12.0 x 10.0 x 25.0mm
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
N30AGB10-08230 |
6.0 |
1000 |
0.025 |
880 |
0.350 |
1.96 |
20 |
0.18 |
9.8 |
0.1 |
0.35 |
|
N30AGB298-08230 |
3.0 |
16 |
0.025 |
12 |
0.060 |
25.48 |
260 |
0.03 |
98 |
1.0 |
0.18 |
|
N30AGB100-08230 |
12 |
200 |
0.040 |
170 |
0.150 |
39.2 |
400 |
0.7 |
196 |
2.0 |
0.70 |
|
N30AGB380-08220 |
3.0 |
13 |
0.025 |
11 |
0.045 |
24.5 |
250 |
0.03 |
117.6 |
1.2 |
0.20 |
|
N30AGB50-09168 |
6.0 |
260 |
0.045 |
210 |
0.150 |
14.7 |
150 |
0.32 |
78.4 |
0.8 |
0.60 |
|
N30AGB100-11120 |
6.0 |
195 |
0.055 |
160 |
0.220 |
34.3 |
350 |
0.57 |
176.4 |
1.8 |
1.2 |
|
N30AGB100-08210 |
12 |
250 |
0.040 |
210 |
0.130 |
29.4 |
300 |
0.65 |
156.8 |
1.6 |
0.75 |
|
N30AGB380-10155 |
5.0 |
38 |
0.035 |
32 |
0.120 |
58.8 |
600 |
0.20 |
313.6 |
3.2 |
0.68 |
|
N30AGB210-10145 |
6.0 |
80 |
0.050 |
52 |
0.165 |
49 |
500 |
0.27 |
245 |
2.5 |
0.85 |
|
N30AGB10-06310 |
12 |
1550 |
0.030 |
1350 |
0.065 |
1.96 |
20 |
0.3 |
9.8 |
0.1 |
0.30 |
|
N30AGB30-11130 |
6.0 |
650 |
0.080 |
540 |
0.230 |
9.8 |
100 |
0.55 |
44.1 |
0.45 |
1.1 |
|
N30AGB298-10145 |
5.0 |
47 |
0.040 |
40 |
0.130 |
49 |
500 |
0.2 |
548.8 |
2.6 |
0.68 |

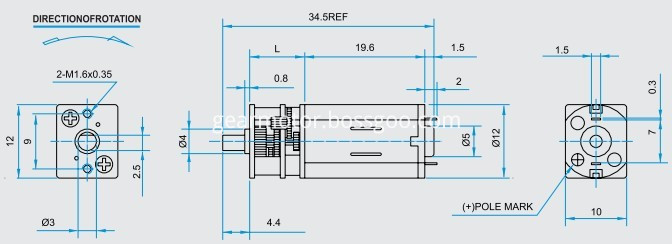

(The "L" is Gear length ,the unit is "mm")
Our engineering department can provide special designs for different shaft length .
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
