MICRO USB 2.0 RECEPTACLE B TYPE

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: ShenZhen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	ShenZhen,ShenZhen

Product Description

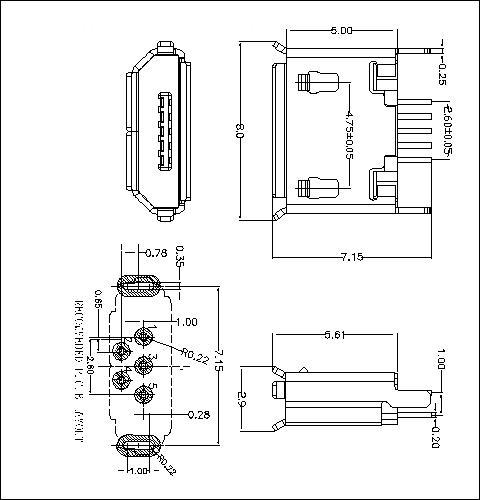

MUFS03 MICRO USB 2.0 RECEPTACLE B TYPE DIP7.15mm STRAIGHT Specifications

1. product specifications:
①Insertion force:35N MAX
②Withdrawal force:10N MIN INITIAL
8-20N AFTER 3000 CYCLES
③Rated current:1.0A
④Rated Voltage:30V
⑤Durability:3000 AC MIN
⑥Dielectric Withstanding Voltage:100V AC MIN
⑦Contact Resistance:30MΩ MAX INITIAL 40MΩ
MAX DAFTER 3000 CYCLES
⑧Insulation Resistance:100MΩ MIN
⑨Working Temperature:-30°TO +80°
2.Materia:
①Housing: LCP UL94V-0
②Contact:C2680R-H Copper Alloy T=0.20mm Piated
Gold 1u" in Mating Area;
③Tin On Solder Talls
④Shell:C2680R-H Brass T=0.25mm Plating Nickel100u"
