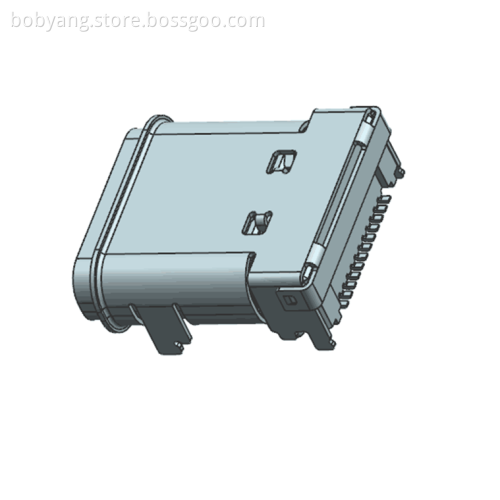

USB 3.1 CF Waterproof dip type

USB3.1 CF Waterproof CL1.75 H3.46mm DIP Type Specifications

1.MATERIAL:
 1.1 Insulator:high temperature plastic UL94V-0
 1.2 Contact:Copper alloy(t=0.15mm)
 1.3 Shell:stainless steel(t=0.20mm)
2.ELECTRICAL CHARACTERISICS:
 2.1 Contact resistance:40mΩMax for initial,10mΩ
  Change after test,measure at 20mV,100mA
 2.2 Contact current rating:5A for collectively
 power supply Pin(PINA1,A4,A9,A12,B1,B4,B9,B12);1.25A
 For Vconn Pin ;0.25A FOR Other signal pin
 2.3 Dielectric withstanding voltage:100v ac r.m.s
 2.4 Insulation resistance 100MΩ Min
 2.5 Operating temperature:-40℃-85℃
3.MECHANICAL CHARACTERISTICS
 3.1Mating force:5-20N
 3.2Unmated force:6-20N after test
4.Plating:
 4.1Terminal contact:(see tab)gold plating all
 over 50u"Min nickel and 80u"min tin all over 50u"
 min nickel on solder area
 4.2 Out shell:50u"Min.Nickel all over
 4.3 Inner shell:Degrease

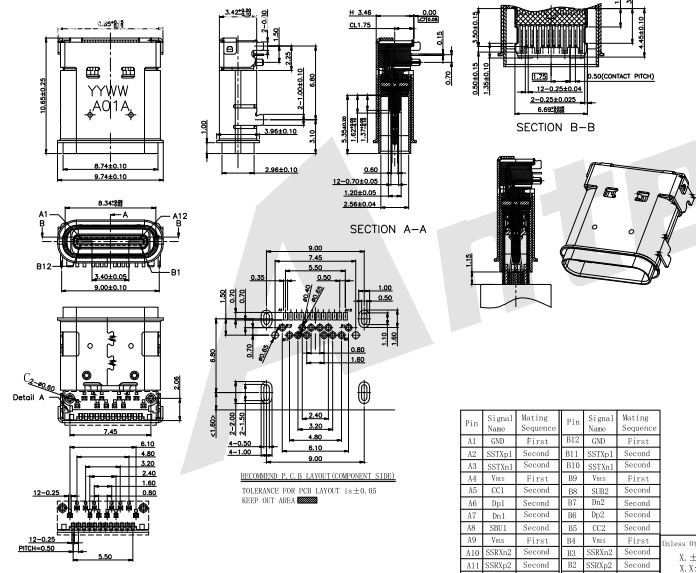

USB3.1 CF Waterproof CL1.75 H3.46mm DIP Type Dimensions:
