D-SUB PCB Female Five Rows 104 Pin Straight

1.product introduction

D-SUB

D-Sub connectors can be used for power, analog, RF, or digital signal transmission, and are generally easy to service/replace/install in the field.This connector style can be used in a wide range of applications, from temperature-controlled data centers to harsh combat environments.Mainly used in telecommunications, industrial control, data transmission, aviation, aerospace, military industry and other fields;Usually applied with PCB or CABLE, as I/0 interface, with shielding function;It is usually used in telecommunications equipment, data exchange equipment, routers, switches, servers and other equipment.

The D-Sub connector was once one of the smallest connectors used in computer systems.They are named for their D-shaped metal connector housing.The metal housing surrounds two or more parallel rows of pins or sockets that transmit data in series.There are five different connector housing sizes.Each housing size can have two different pin configurations.The standard housing size has two rows of pins, and the high-density version has three rows of pins.

2.product parameter

SHELL : STEEL MATERIAL, FRONT SHEEL NICKEL FINISHED

NICKEL FINISHED, BACK SHEEL TIN FINISHED

INSULATOR

PBT THERMOPLASTIC 30% GLASS FILI ED,

UL 94V-0 RATED,

PC99 COLOR

CONTACT MATERIAL

BRASS

CONTACT FINISH : SEI ECTIVE GOLD FLASH

RIVITED INSERT : BRASS MATERIAL, NICKEL FINISHED

JACK SCREWS : BRASS MATERIAL

NICKEL FINISHED

WITH #4-40 THREADED RIVETED CLINCH

NUTS ON BACK SHELL

ELECTRICAL CHARACTERISTICS

CONTACT CURRENT RATING :5.0 AMPS

CONTACT RESISTANCE : 30MILLIOHMS MAX.

DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC MIN 。

INSUI ATION RESISTANCE : 1000MEGOHMS MIN.

TEMPERTURE RATING: -55°C~+105°C

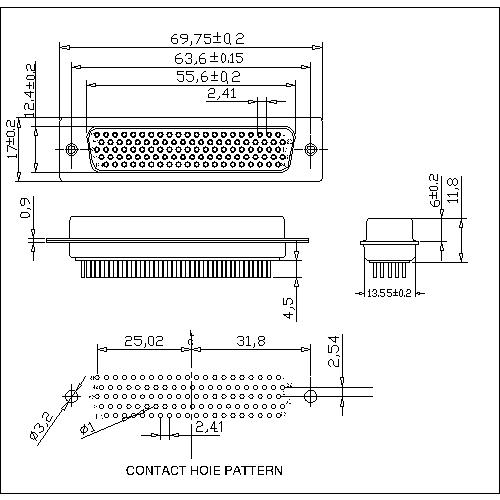

3.product picture
