0.8mm Series Cable Plug Connector IDC Molded Type

The SCSI connector is a stand-alone processor standard for system-level interfaces between computers and their peripherals (hard disks, floppy drives, optical drives, printers, scanners, etc.).The SCSI standard defines the commands, communication protocols, and electrical characteristics of the entity (in OSI parlance, occupying the physical layer, link layer, socket layer, and application layer), and the largest part of the application is in storage devices.It is the bridge of data transmission between computer system and external equipment, and can provide high-speed and reliable data transmission channel.

Main features of SCSI connector:

High-speed transmission:

The SCSI connector adopts parallel transmission mode, and the data transmission speed is fast, which can meet the requirements ofhigh-performance computing and large-scale data storage.

Multi-device support:

SCSI connector supports the connection of multiple devices and can be connected to multiple SCSI devices at the same time, providing higher flexibility and scalability.

Strong reliability:

SCSI connector adopts differential signal transmission mode when transmitting data, which can effectively resist electromagnetic interference and noise impact and provide reliable data transmission guarantee.

Hot swap:

The SCSI connector supports hot swap. That is, the SCSI connector can be used to insert and remove external devices when the computer is running without restarting the system.

2.product parameter

MATERIAL:

 INSULATOR: LCP WITH 30% G.F  COLOR:NATURE.

 TERMINAL: COPPER ALLOY

 TERMINAL PLATING: SELECTIVE GOLD FLASH ON CONTACT AREA.

 TIN 100U”MIN.ON SOLDER TAIL.

 FRONT SHELL: SPCC-SD NICKEL PLATING ON SURFACE.

 CU PLATING ON BASE.

 SPECIFICATIONS

 CONTACT CURRENT RATING: 0.5 AMP

 CONTACT VOLTAGE RATING: 30V AC (RMS)

 DIELECTRIC WITHSTANDING VOLTAGE:250V AC FOR ONE MINUTE

 INSULATION RESISTANCE: 500MEGOHMS MIN.

MATERIALS

 CONTACTS: COPPER ALLOY,SELECTIVE GOLD PLATED

 INSULATORS: THERMOPLASTIC UL94V-0 RATED.

 SHELL: COLD ROLLER STEEL.

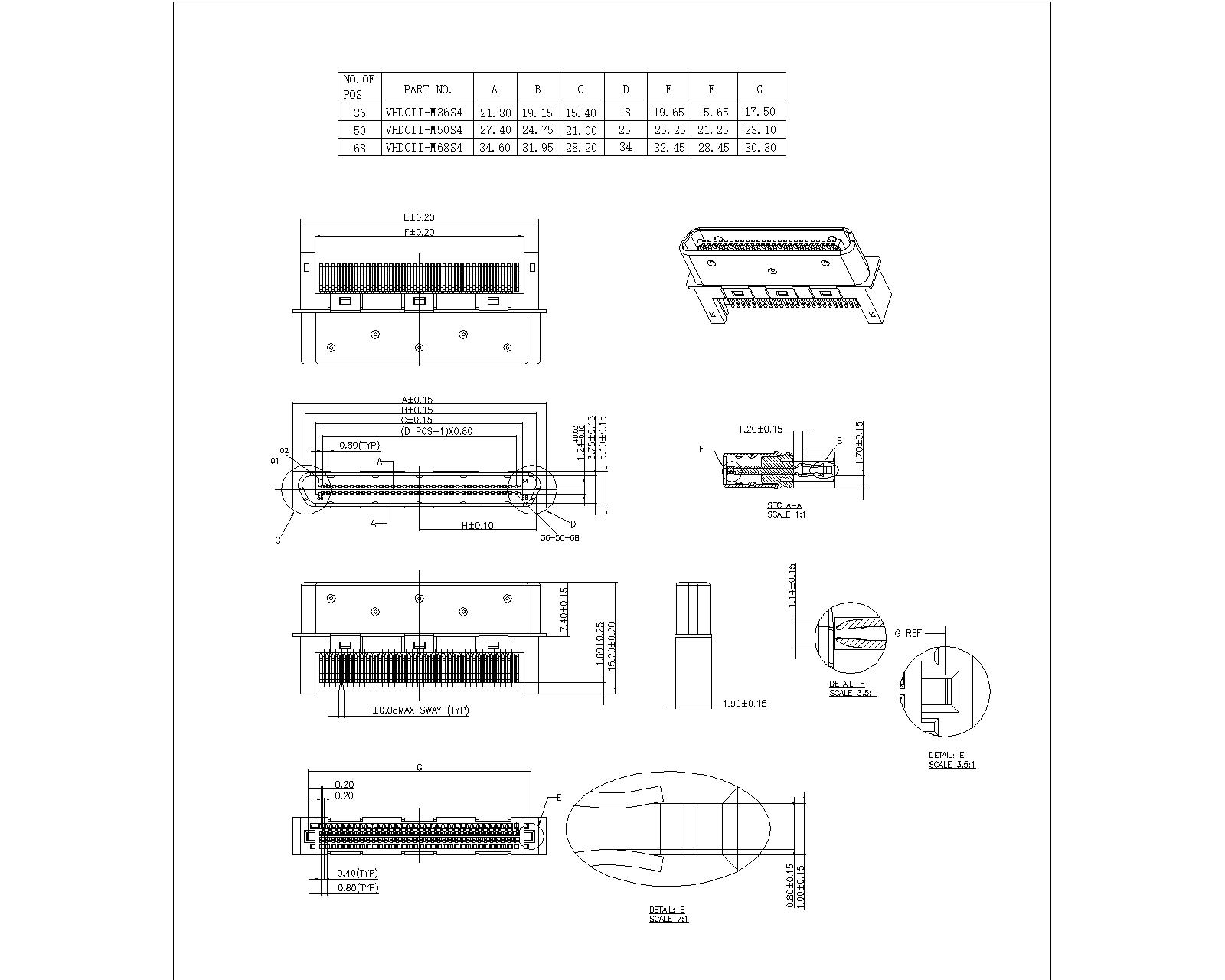

REPRESENTS A CRITICAL DIMENSION.

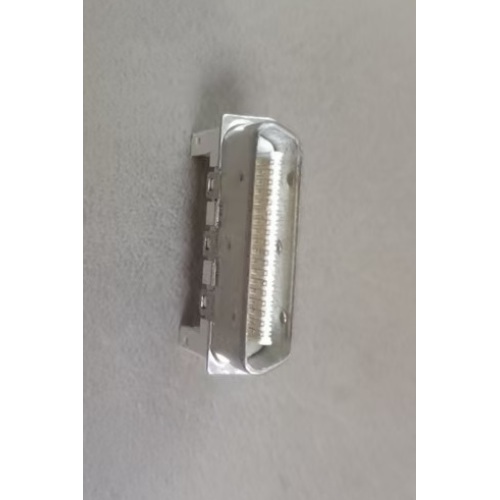

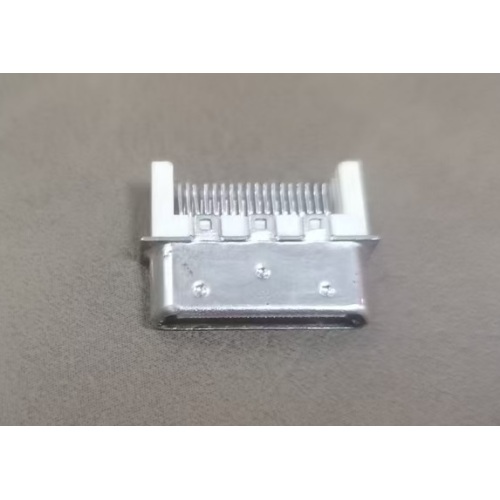

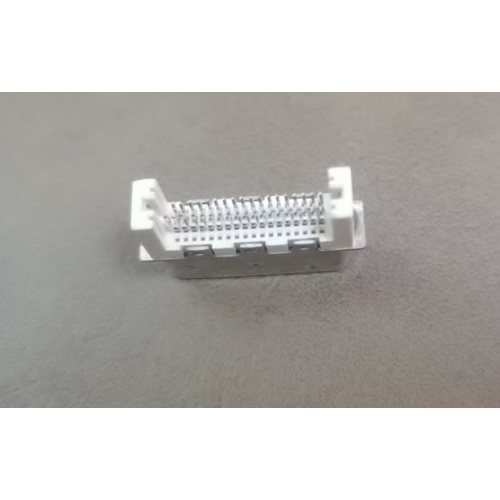

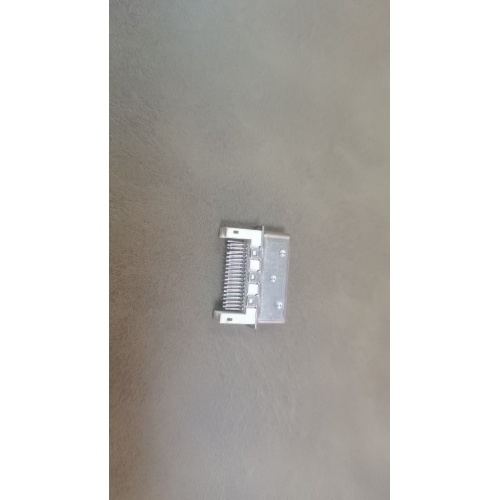

3.product picture
