USB3.1 Type-C Vertical DIP without pegs
  • USB3.1 Type-C Vertical DIP without pegs
USB3.1 Type-C Vertical DIP without pegs

USB3.1 Type-C Vertical DIP without pegs

  • $500.00
    ≥1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean, Air, Express
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 2000K/Month
Supply Ability: 2000K/Month
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CIF,EXW
Certificate: ISO9001
HS Code: 8536909000
Transportation: Ocean,Air,Express
Port: Shenzhen
Product Description
Product Description

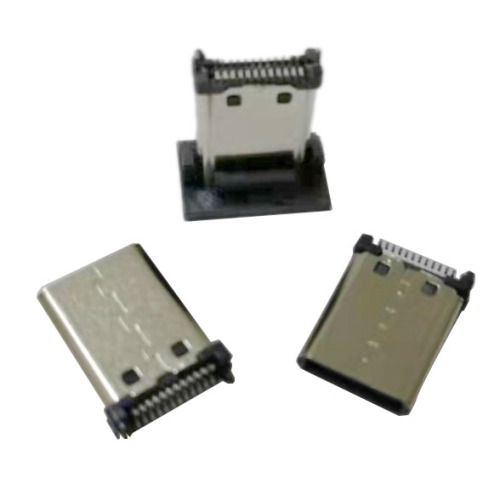

USB3.1 Plug Type C Vertical Dip without pegs


Specifications

1.Material:

  Molding:LCP UL94V-0
  Contact:Copper alloy
  Gold plated min on contact area,100u" min  tin(lead free) , on solder area
  Shell:SUS304-H,T=0.30±0.03mm 50u" nickel plating over all
  Shild:SUS304-H,T=0.12±0.03mm
2.Mechanical:
  Insertion:5-20N
  Extraction:8-20N after test
  Durability:10000 cycles
3.Electrical:
  Current Rating:5A for VBUS
  1.25A for GND pin
  0.25A for other
  Voltage:20V max
  Withstanding Voltage: 100V AC r.m.s
  Contact Resistance: 40mΩ Max
  Insulation resistance:100MΩ Min
4.Environmental:
  Temperature range:-30℃~+85℃

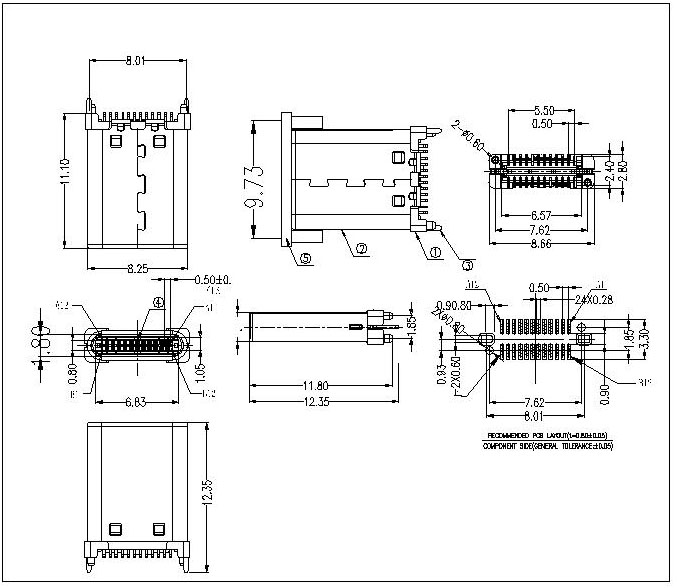

2D Drawing:

U3.1MS05-SLXXX USB3.1 Plug Type C Vertical Dip without pegs
