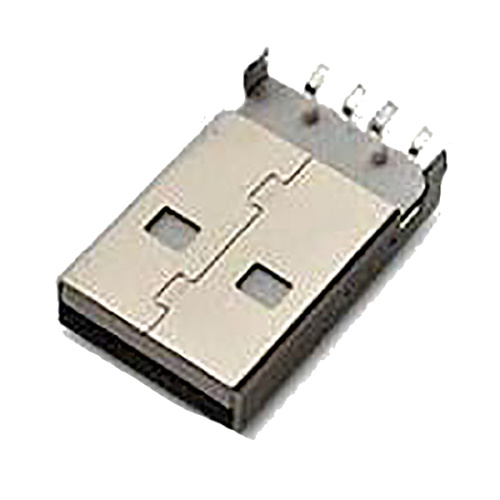

USB A Type Plug SMT Mid-Mounting 3.4mm

Product name:   USB A Type Plug SMT Mid-Mounting 3.4mm

Antenk's connector system accommodates the 2 deferentially driven date wires that provide bi-directional, simultaneous signals for full speed (12Mbps) or low speed (1.5Mbps) used in universal series bus (USB) systems. Designed for outside-of-box, user-friendly applications, the ATK system consists of a single, four-position board-mount receptacle and mating cable mount overmolded plug. Board-mount receptacles are availalble in standard, Type B, stacked, and side-by-side configurations, adding to the system's versatility to meet the needs of many USB applications.

A comprehensive selection of USB connectors are available with various combinations of form factors, interface and version types, vertical and horizontal configurations, as well as a unique new USB 2.0 Type-C charging option. Chances are ATK has the right USB connector for you.

USB was originally developed and introduced in 1996 as a way of setting up communication between a computer and peripheral devices by replacing many varieties of serial and parallel ports.
USB connectors have become the standard connection method for devices such as mice, keyboards, game pads and joysticks, scanners, digital cameras, printers and external hard devices.
Although designed for personal computers USB has become commonplace on other devices such as mobile phones, PDA's, video game consoles, AC power adaptors, memory sticks and mobile internet access dongles.

Specifications:
Electrical:
1.Current Rating：1.5A Max
2.Voltage Rating: 30V DC
3.Contact Resistance：30 milliohms MAX
4.Dielectric Withstanding Voltage: 500V AC AT Sea Levol
5.Insulation Resistance：1000 Megohms MIN
Matoriaal:
1.Housing:Hing Temperature Thermoplastics,PBT/LCB UL 94V-0 White/Black
2.Contact: Copper Alloy C2680
3.Shell: Copper Alloy C2680/SPCC
Plating :
1.Contact: Plated Gold In Mating Area Tin On Solder Talls
2.Shell:Nickel Plating
Mechanical:
1.Insertion Force:Connector Mate and Unmate Force
  Mate Force:3.75kgf(MAX)   Unmote Force:1.02kgf(Min)
2.Terminal Retenion:1.2kgf(Min)
