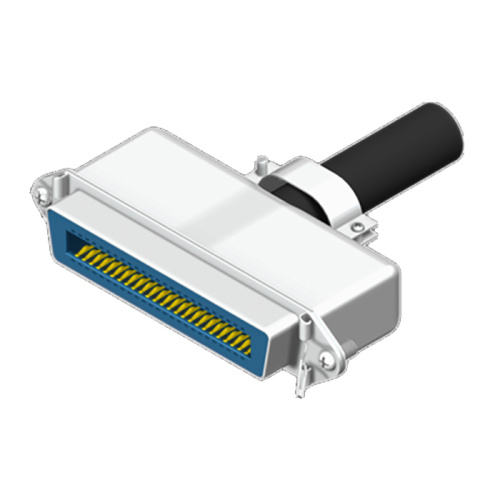

2.16mm CENTRONIC FEMALE SOLDER WIRE
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW, FCA
- Min. Order:
- 1000 Bag/Bags
- Min. Order:
- 1000 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- SHENZHEN, SHENZHEN
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Productivity: | 100000K/month |
Supply Ability: | 100000K/month |
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,CIF,EXW,FCA |
Certificate: | ISO9001 |
HS Code: | 8536909000 |
Transportation: | Ocean,Air |
Port: | SHENZHEN,SHENZHEN |
Product Description
Product Description
Shenzhen Antenk Electronics Co., Ltd. launched a

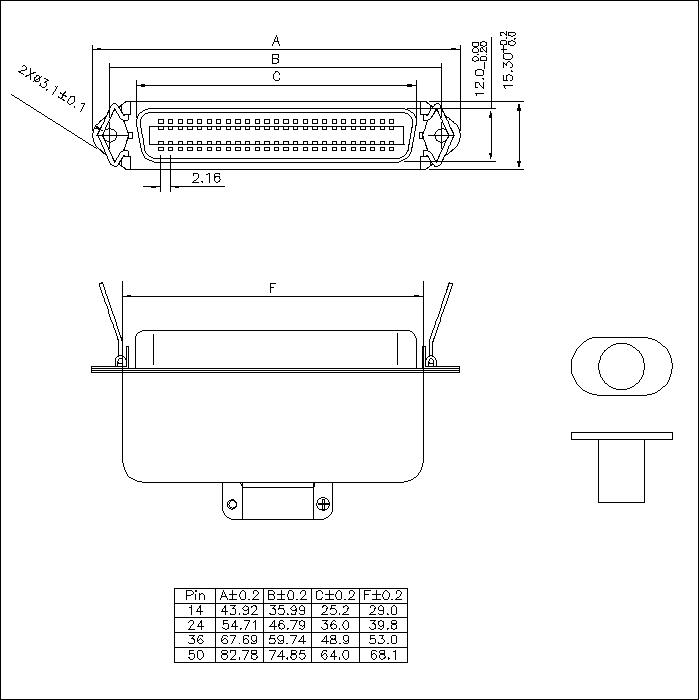

57CC-FXXX02
Current Rating:1A MAX
Dielectric Withstanding Voltage:750V AC for one minute
Insulation Resistance:1000MΩ Min.(at 500V DC)
Contact Resistance:30mΩ Max.
Total Mating Force:1.0 kgf Max
Total Unmating Force:1.0 kgf Min
Temperature:-55°C to +85°C
Contact:Brass
Gold Flash On Contact Area
Tin Plated On Solder Tails,Over Nickel
Shell:SPCC,Nickel Plated
INSULATOR:PBT G.F. UL 94V-0

Dielectric Withstanding Voltage:750V AC for one minute
Insulation Resistance:1000MΩ Min.(at 500V DC)
Contact Resistance:30mΩ Max.
Total Mating Force:1.0 kgf Max
Total Unmating Force:1.0 kgf Min
Temperature:-55°C to +85°C
Contact:Brass
Gold Flash On Contact Area
Tin Plated On Solder Tails,Over Nickel
Shell:SPCC,Nickel Plated
INSULATOR:PBT G.F. UL 94V-0
