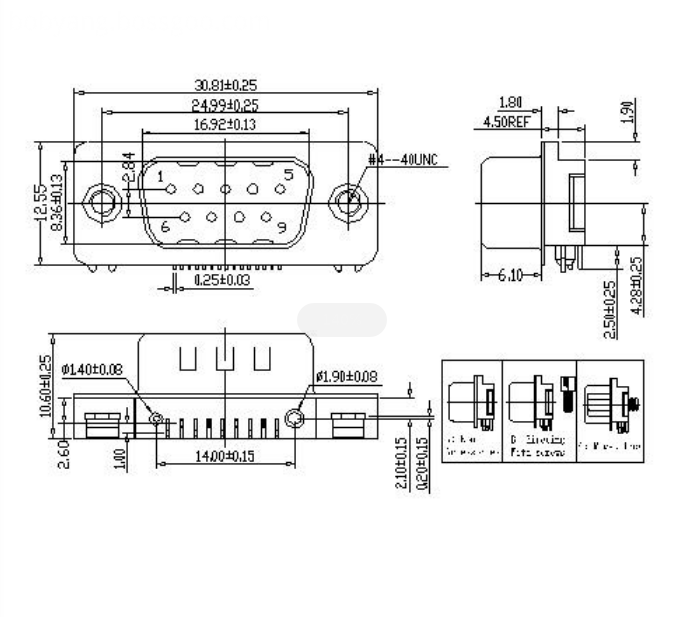

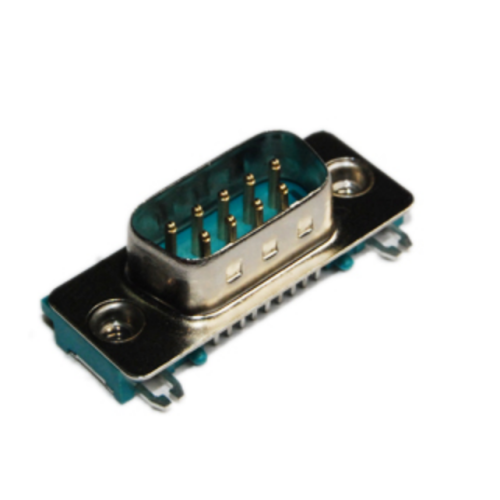

D-SUB Slim 9M Right Angle DIP Type

Manufacturer : ANTENK ELECTRONICS.,CO LTD.

There are DVI to VGA adapters and cables. As neither DVI nor VGA carry audio channels, a separate path for audio should be used, if needed. Simple adapters from other modern outputs such as HDMI to VGA are also commonplace, again requiring a separate audio path.
 To connect VGA outputs to interfaces with different signaling, more complex converters may be used. Most of them need an external power source to operate and are inherently lossy. However, many modern displays are still made with multiple inputs including VGA, in which case adapters are not necessary.
VGA to SCART converters can pass color information, because VGA - SCART RGB signals are electrically compatible, except for synchronization. Many modern graphics adapters can modify their signal in software, including refresh rate, sync length, polarity and number of blank lines. Particular issues include interlace support and the use of the resolution 720×576 in PAL countries. Under these restrictive conditions, a simple circuit to combine the VGA separate synchronization signals into SCART composite sync may suffice.

SPECIFICATION

Current Rating :5A

Contact  Resistance:20 Milliohms Max

Withstanding Voltage:500V AC For 1 Minute

Insulation Resistance :1000 Mehms Min

Operating Temperature:-55℃ to +105℃
