SIM Card Connector 6P With Difference Plastic Height

1.product introduction

SIM card holder is an electronic component used to install SIM card, which is widely used in communication digital, industrial equipment, security and other fields.In the field of communication digital, SIM card holder is widely used in mobile phones, tablet computers, notebook computers and other devices for installing SIM cards to achieve mobile communication functions.In the field of industrial equipment, SIM card is used in a variety of smart devices, such as smart watches, smart speakers, etc., for the installation of SIM cards, to achieve communication and data transmission between devices, is a small smart card, designed to store user identity, security, authentication and personal information for use in mobile network terminals.In order to make power and electrical signals "uninterrupted", "unchanged" and "undiminished", contact reliability technology is particularly important.CSCONN provides SIM cards with excellent reliability and durability, covering a wide range of types and sizes. This product has the advantages of small ultra-thin structure, hot swappable support, stable performance, etc., suitable for smart devices such as tablet computers and mobile MifIs

2.product parameter

  SPECIFICATIONS

     INSULATION RESISTANCE: 500M min.AT DC 500V DC

     WITHSTANDING VOLTAGE:  250V ACrms FOR 1 MINUTE

     CONTACT RESISTANCE: 100M max. AT 10MA/20mV max

     CURRENT RATING: 0.5A

     VOLTAGE RATING: 5.0 vrms

     OPERATING TEMP.RANGE:-55 C+85 C

     MATING CYCLES: 5000 INSERTIONS

 MATERIAL:

     INSULATOR: HI-TEMPERATURE PLASTIC,UL 94V-0,

     COLOR"BLACK

     TERMINAL: COPPER ALLOY,T=0.15mm

     SHELL: STAINLESS STELL,T=0.15mm

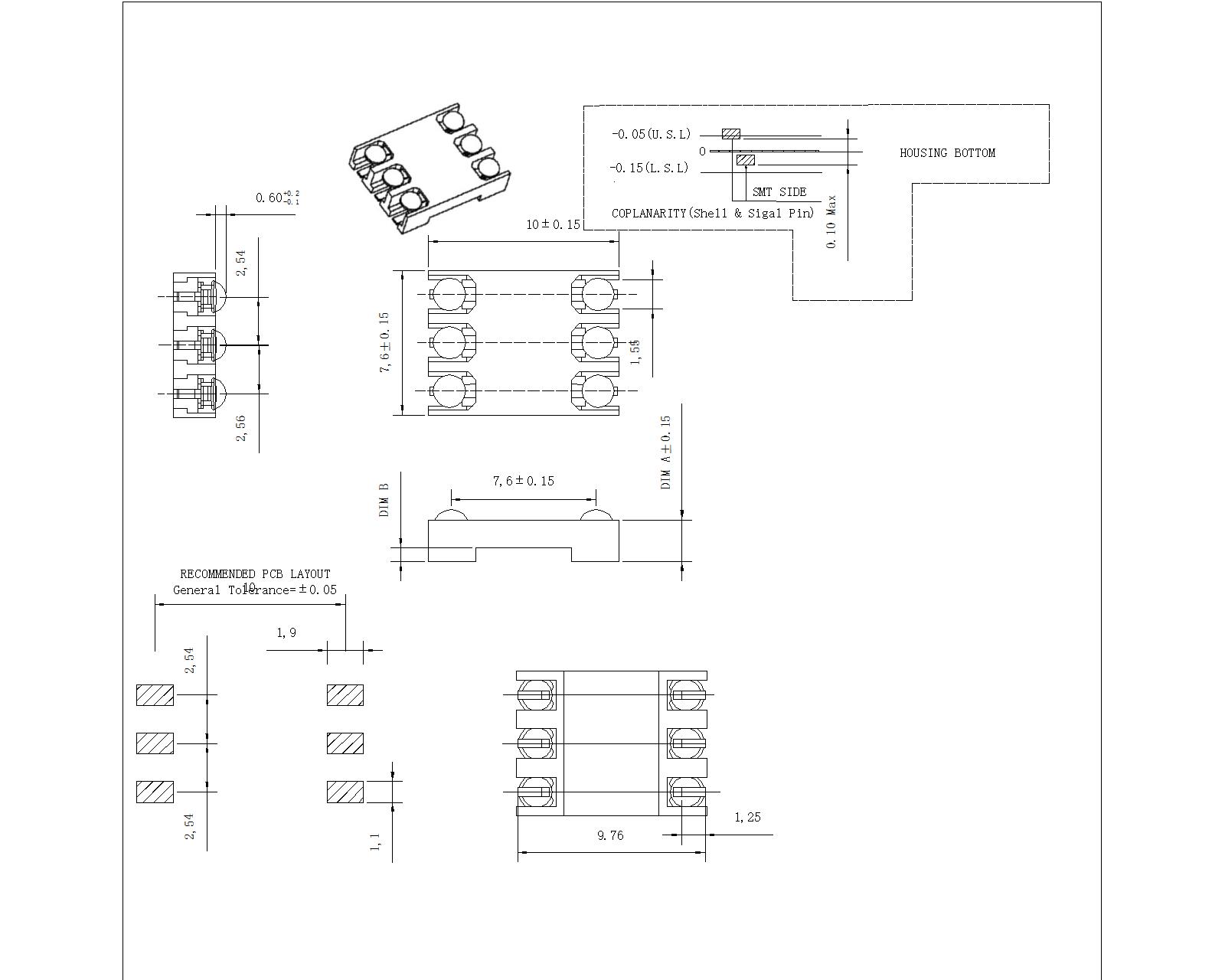

3.product picture
