NANO Series 1.50mm Height Connector

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

NANO Series 1.50mm Height Connector

Specifications:

N0TE:
1.Material:1-1 Housing:High Tempererature Thermoplastic.(LCP S475)Color Black UL 94V-0
1-2 Contact: Phosphor Bronze(C5210R-H,T=0.08士0.01mm)
1-3 Cover SUS301-H T=0.15土0.03mm
2.Plating:2-1 Contact Terminal:
Contact Area: Gold lu” Min. Solder Area: Gold 0.8u” Min
Underplating: Ni Overall 50U" Min.
2-2 Cover: Underplating: Ni Overall 30U" Min. Solder Area Gold 0.8u” Min
3. Specification: 3-1.Current Rating 0.5A Max.
3-2.Contact Resistance1 50 mohms Max
3-3.Insulation Resistance:1000 Mohms Min./500VDC
3-4.Dielectric Withstanding Voltage:500 V AC/1minute
3-5.0perating Temperature:-25℃ to +85℃
3-6.Mating Cycles:5000 Insertions
4.Product Compliant to RoHs Directive 2002/95/EC And ELV 2000/53/EC
5.Part Must Comply Taisol HF WD-3-l-091 Specification.
6.Recommending A Metal More Than 0.15mm Thick.
Please Confirm Solderadility, If Use A Metal Mask Less Than 0.15MM Thick

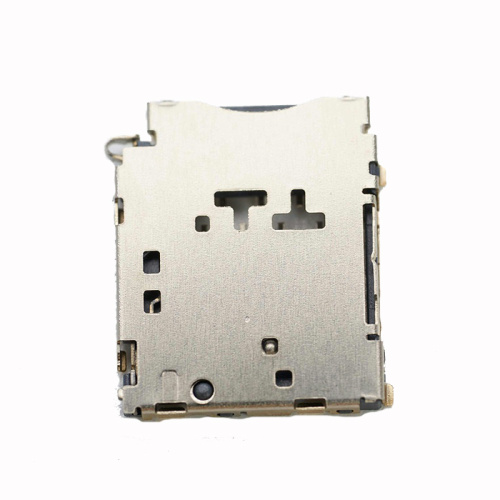

NANO Series SIM Card 1.50mm Height Connector ATK-NSIM150A005
