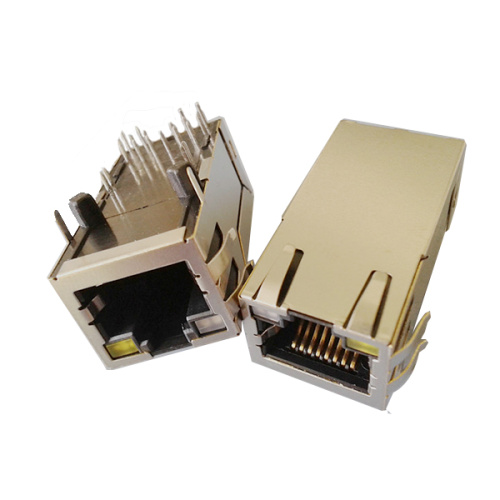

RJ45 WITH TRANSFORMER TAB UP 1.3IN

DISCRIPTION:
      RJ45 With Internal Magnetics ConnectorDesignde to Support Such Applications as:Ethernet Equipment
      Complex,Switches,Routers,Firewalls,Servers and Hub Internal Magnetics are 100% Electrically Test
      for Functionality Per IEEE802.3af/at Requirement
ELECTRICAL:Rohs Peak Wave Solder Temperature Rating 235°C High Performance For Maximum EMI Suppression
      350uH Minmum OCL With 8mA Bias Current Poe rating:30W,700mA,48V (For PoE Products Only)
      Jack Caviy Conforms And Regulations,Part 68 Subpart F.
      Insertion Force:2 Contacts---350g 4 Contact---500g
                      6 Contacts---750g 8 Contact---900g
                     10 Contacts---1050g
MECIANICAL:
      RETENTION STRENGTH:7.7KGS BETWEEN Jack and Plug
      DURABILITY:750 Mating Cycles Mini
      HOUSING:1 Glass Filled PA66(UL 94V-0)
              2 Glass Filled PA66/LCP (UL 94V-0)
              3 Glass Filled PBT(UL 94V-0)
MATERIAL:Spring Wire:1 0.2-0.45MM DIA Phosphor Bronze Gold Plating Over Nickel
                     2 0.2-0.35MM Thickness Phosphor BRonze Alloy Selective Gold Plating Over Nickel
         Shielding:0.12-0.24MM Thickness Copper Alloy With Tin Plated
         Gold Pating:3u",6u",15u”，30”，50u”
         Working Temperature:-20°C~70°C
         Tolerances Unless Otherwise Specified:0~10±0.15、10~20 ±0.2、20~40±0.25、40~70 ±0.3≥70±0.4
