Machined PGA Pin Grid Array Sockets 1.0x1.0mm

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

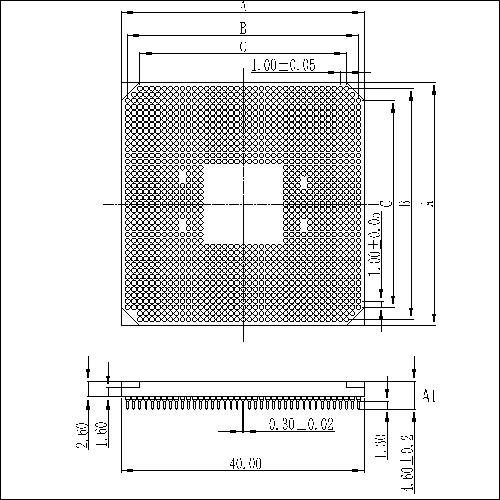

Machined PGA Pin Grid Array Sockets 1.0x1.0mm

Specifications:

Material:
Insulator:FR4 UL 94V-0
Pin(Out Sleeve): Brass ,Machined CuZn38Pb2
Plating(Sleeve):3U"Gold Plated Over Nickel
Plating(Cilp):3U"Gold Plated Over Nickel
Cilp(Contact 3 Flnger):Beryllium Copper Heat Teated
Electrical:
Current Rating:3Amps/Contact Max.
Contact Resistance:≤1KM at V=100V
Operating Voltage:60VAC/DC
Mechanical:
Average Insertion force with steel pin of ∅0.28<30g
Average withdrawal force with steel pin of ∅0.28<9g
Operating Temperature:-55°C to -125°C
Soldering Temperature:+260°C,10S Max

PGA06-XXXXX Machined PGA Pin Grid Array Sockets 1.0x1.0mm
