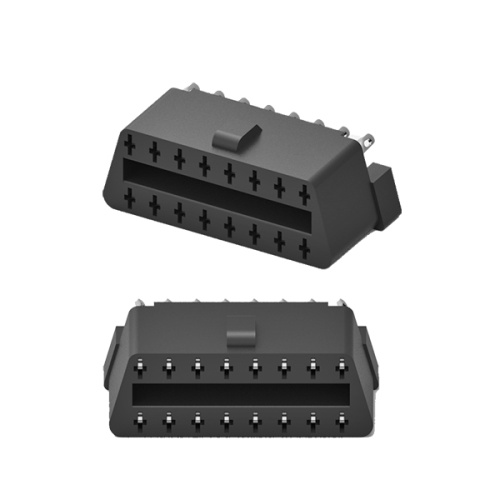

OBD Female 16POS Receptacle(Inset) Molding Solder Type

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

Product name：OBD-B-16-G0-B-X-X-PG001

Electrical Performance：
1.Dielectric Strength:1000V AC/1 Minute.
2.Contact resistance:100 m Ohm MAX.
3.Insulation Resistance:500VDC,100M Ohm Min.
Rateing and Application Wire:
1.Rated Volatage: 30V MAX
2.Rated Current: 5Amps,Wire Insulation 0.D:∅1.2~∅2.6
3.Ambient Temperature Range: -40°C ~ +85°C
Notes:
1.Housing Material: PBT UL94V-0
2.The Pin 4&PIN 5  Are 10.0mm High Out of The Plastic,
3.Terminal Material: Brass ,Nickel plated(100-120U")
4.General Tolerance: ±0.3mm
5.Supporting Terminal Material Number:C-OBD-MT-001
