Mini USB AB 5P SMT Short Body Sink1.8mm

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

More About USB
The Universal Serial Bus standard has been extremely successful. USB ports and cables are used to connect hardware such as printers, scanners, keyboards, mice, flash drives, external hard drives, joysticks, cameras, and more to computers of all kinds, including desktops, tablets, laptops, netbooks, etc.

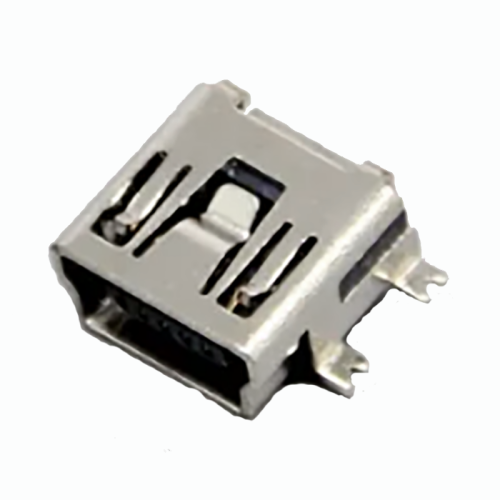

Mini USB AB Type 5P Receptacle,SMT,Short Body,Sink1.8mm NUFM19-XXXXX

SPECIFICATIONS:
Current Rating：　 1A Max
Contact Resistance： 50 milliohms MAX
Dielectric Withstanding Voltage:100V AC AT Sea Levol
Insulation Resistance:500　MEGA ohms MIN
Housing:Temperature Thermoplastics,LCP UL 94V-0
Contact:Copper Alloy,T=0.25mm Piated Gold in
Mating Area;Tin On Solder Talls
Shell:Copper Alloy,T=0.40mm Nickel/Plating
Operating Temperature Range:-40°C To +60°C
Storage Temperature Range:-45°C To +65°C

NUFM19 19-Mini USB 5P AB Type Receptacle Connector SMT Short Body,Sink1.8mm
