5P DIP Type Mini USB 4Legs

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

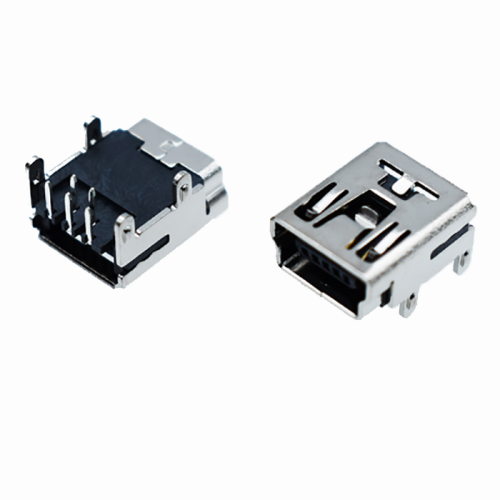

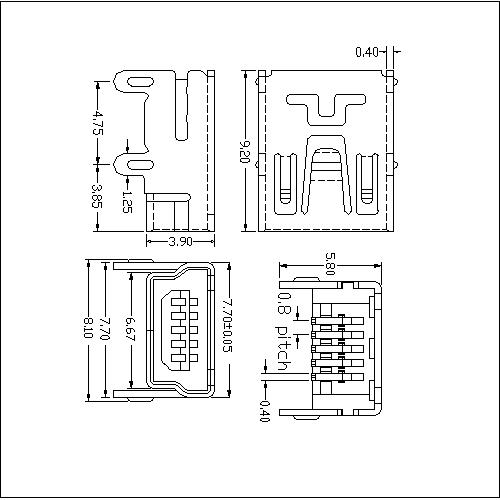

Mini USB 5P Receptacle SMT B Type(Shell DIP 4Legs)

Specifications:
Current Rating: 1A Max
Contact Resistance：50 milliohms MAX
Dielectric Withstanding Voltage:100V AC AT Sea Levol
Insulation Resistance: 500 MEGA ohms MIN
Housing：
Temperature Thermoplastics,LCP UL 94V-0
Contact:
Copper Alloy T=0.25mm Piated Gold in Mating Area;
Tin On Solder Talls
Shell:
Copper Alloy T=0.40mm Nickel/Plating

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

5P SMT Type Mini USB Socket , Mini USB Shell DIP 4Legs
