Micro USB B Type 5P with Dip ejector
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW, FCA
- Min. Order:
- 1000 Bag/Bags
- Min. Order:
- 1000 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- SHENZHEN, SHENZHEN
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Productivity: | 100000K/month |
Supply Ability: | 100000K/month |
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,CIF,EXW,FCA |
Certificate: | ISO9001 |
HS Code: | 8536909000 |
Transportation: | Ocean,Air |
Port: | SHENZHEN,SHENZHEN |
Product Description
Product Description

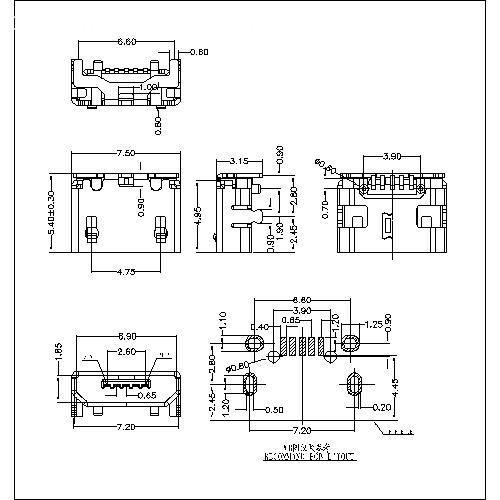

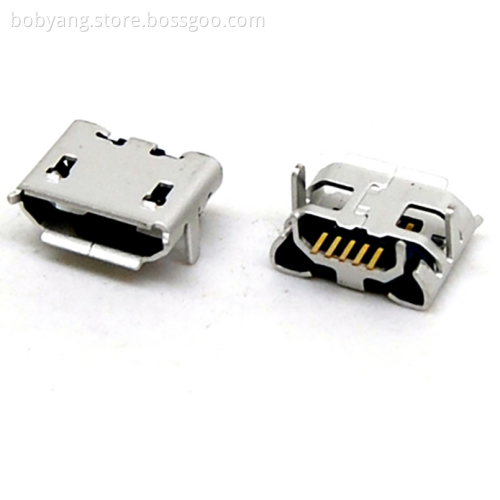

Micro USB B Type 5P with 4 legs Dip (6.60mm+7.20mm),ejector type
Note:
1.Material:
1.1 Housing: High temperature thermoplastic with g.f,UL94v-0
1.2 Contact: copper alloy
1.3 Shell: copper alloy
2.Specifications:
2.1 Current rating:1,5 Pin 1.8A Max/2,3,4Pin 1Max
2.2 Dielectric withstanding voltage: 100 V(ac) for 1 min.
2.3 Contact resistance: 50 mΩ Max.
2.4 Insulation resistance: 100 MΩ Min.
2.5 Total mating force: 3.57 Kgf Max.
2.6 Total unmating force: 1.0 Kgf Min.
2.7 Temperature range: -30°C 80°C
1.Material:
1.1 Housing: High temperature thermoplastic with g.f,UL94v-0
1.2 Contact: copper alloy
1.3 Shell: copper alloy
2.Specifications:
2.1 Current rating:1,5 Pin 1.8A Max/2,3,4Pin 1Max
2.2 Dielectric withstanding voltage: 100 V(ac) for 1 min.
2.3 Contact resistance: 50 mΩ Max.
2.4 Insulation resistance: 100 MΩ Min.
2.5 Total mating force: 3.57 Kgf Max.
2.6 Total unmating force: 1.0 Kgf Min.
2.7 Temperature range: -30°C 80°C
