Micor USB 5P Receptacle Angle B Type DIP

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

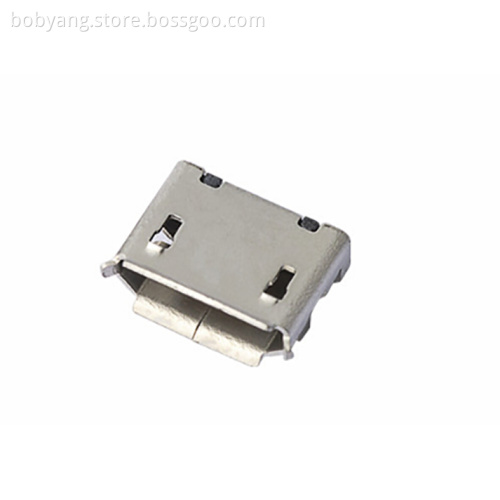

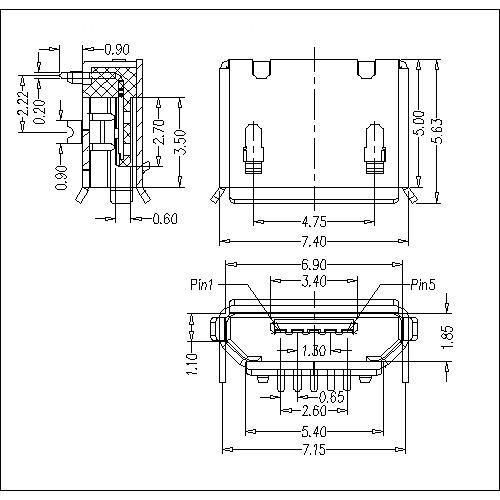

Micor USB 5P Receptacle Angle B Type,DIP7.15mm
Specifications:
Current Rating: 1A Max
Contact Resistance: 50 milliohms MAX
Dielectric Withstanding Voltage: 100V AC AT Sea Levol
Insulation Resistance: 100 MEGA ohms MIN
Housing:
Temperature Thermoplastics,LCP UL 94V-0
Contact:
Copper Alloy T=0.20mm Piated Gold in Mating Area;
Tin On Solder Talls
Shell:Brass T=0.25mm Nickel/Plating

we are do our best to ensure items ' quality and our service. We greatly appreciate your POSITIVE feedback, so please

contact us before you leave a negative feedback and general feedback,Thank you for your support!If you have any

questions, please ask us first, we will answer you the first time after seeing.
