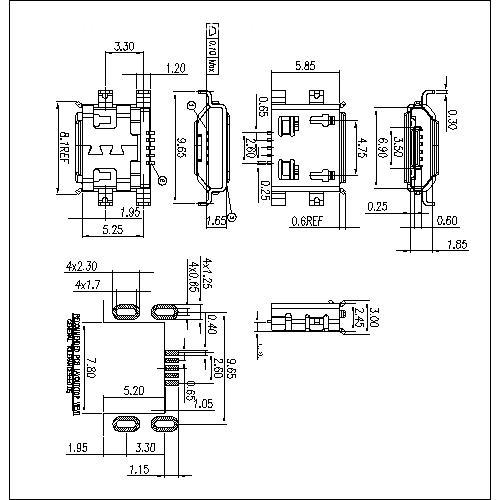

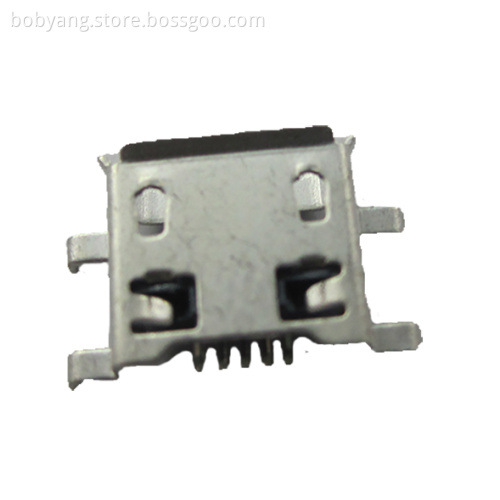

MICRO USB FEMALE 5PIN CONNECTOR OFFSET TYPE WITH 4 SHELL DIP 9.65mm,SINK 0.8MM

SPECIFCATIONS:
Contact current Rating:
1.0 Amperes Max for pin1&pin5
Voltage: 30V Max
Dielectric Withstanding Voltage:100VAC For One Minute At Sea Level
Insulation resistance:100Megohms Minimum.At 100V DC
Contact Resistance:3OmΩ Max
Mechanical Characteristics:
Mating Force:35 Newtoms.Maximum
Unmating Force:10 Newtoms.Mlnimum.
8N Min After Durbaility
Durability: 6000 Cycles Min

MUFM25 25-MICRO USB FEMALE 5PIN CONNECTOR,OFFSET TYPE,WITH 4 SHELL DIP,SINK 0.8MM
