MICRO USB B TYPE RECEPTACLE SINK REVERSE TYPE

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

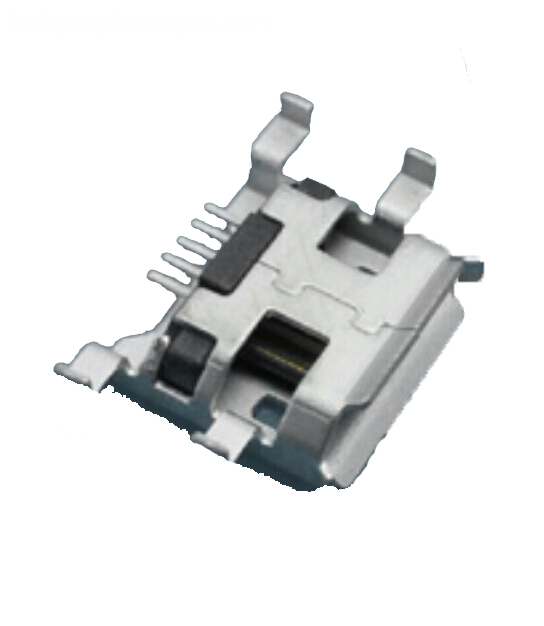

MICRO USB B TYPE RECEPTACLE SINK REVERSE TYPE

SPECIFICATIONS:
ELECTRICAL CHARACTERISTICS:
1)PATING:2A(PIN1/5) ,0.5A(PIN2/3/4)
2)CONTACT RESISTANCE:30mΩ max ,initial 40mΩ max
3)DIELECTRIC WITHSTANDING VOLTAGE:500V AC for one minute
4)INSULATION RESISTANCE:100mΩ min measured by 500VDC
MECHANICAL CHARACTERISTICS:
1)INSERTION FORCE:3.6 kgf max
2)WITHDRAWAL FORCE:0.8 kgf min
3)LIFE TEST:10000 cycles
OTHER GENERAL SPEC TO REFER 2UB1000-SERIES SPEC
TO CONFORM TO THE SINGATRON HSF SPEC
HALOGEN FREE PRODUCT IDENTIFICATION MARK
ON PRODUCT.
HALOGEN FREE PRODUCT IDENTIFICATION LABEL
ON PACKAGING
FOR REFLOW SOLDERING LEAD-FREE PROCESS
SOLDER HEAT RESISTANCE REFLOW SOLDERING 260℃ 10SECS
PLUG INTERFACE DIMENSIONS COMFORM TO USB2.0 SPEC
