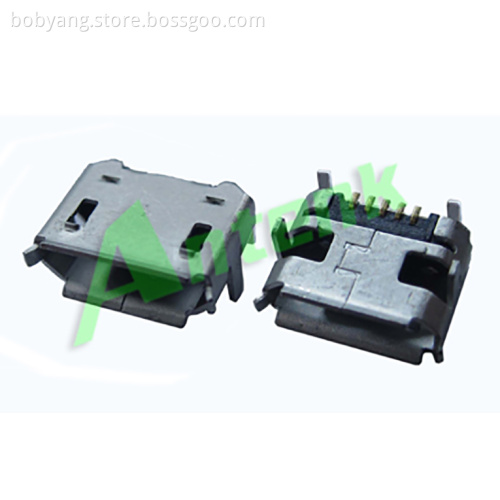

MICRO USB 5P BF WITH 4 DIP

MICRO USB 5P B/F SMT(WITH 4 DIP SHELL) B TYPE

Specifications:
Current Rating:              0.8A Max
Contact Resistance:           50 milliohms MAX
Dielectric Withstanding Voltage: 100V AC AT Sea Levol
Insulation Resistance:        100 MEGA ohms MIN
Housing:
Temperature Thermoplastics,LCP UL 94V-0
Contact:
Copper Alloy T=0.15mm Piated Gold in Mating Area;
Tin On Solder Talls
Shell:Brass T=0.25mm Nickel/Plating

Antai Electronic Co., Ltd. strives for excellence on the basis of the existing ones, and hopes to develop and improve its production capacity through the guidance and requirements of all customers.
       Corporate slogan: a group of people, one heart, fight together, must win
       Company mission: connect the world to connect the future,
       Corporate vision: to become the first brand of well-known connectors
       Values: diligence, gratitude, integrity

We sincerely invite you and your company representatives to understand the purchase of our products.
