Female Lock Front A Code SMD Unshielded Type

1.product introduction

M8 connector, also known as the sensor connector, is divided into cable and without cable, cable outlet is 4-6 and 6-10 two options,M8 connector has needle and hole, screw connection, housing protection level IP67, but also divided straight head and elbow.M8 connectors have been widely used in outdoor light boxes, construction machinery, steel production equipment, electric power equipment, mining machinery, ship machinery, automotive equipment, production automatic equipment, temperature sensors, hydraulic machine tools, sensors, solenoid valves, instrumentation, pressure transmitters.

Round M8 connectors minute and hole, screw connection, external protection class IP67, designed for easy insertion and removal.

At the same time, it is waterproof, oil resistant, cold resistant, stable performance, efficient and fast connection, and provides a stable connection bridge between equipment.

And widely used in automotive sensors, temperature sensors, photoelectric switches, industrial automatic robot sensors and other systems

Many fields of engineering

2.product parameter

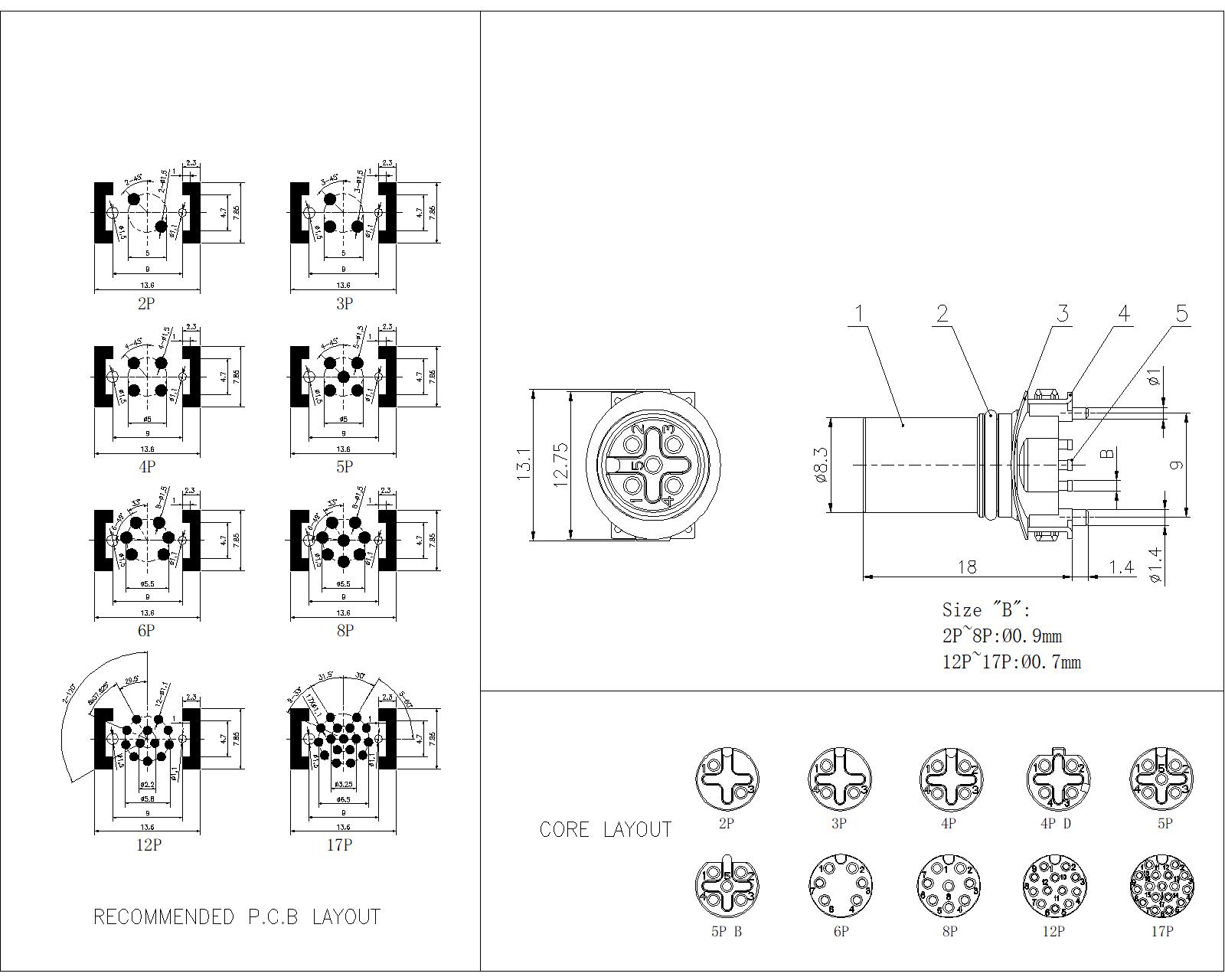

 Specification:

1.M12 Female contact pin, Gold plated

2.SMD adhesive core shielded stabiliser

3.Waveform spacer, silver colour

4.Fluorine rubber φ7*φ5.4*0.8 black

5.M12 Female Insulator, black

6.Coupling:Threaded coupling

7.Termination:SMD

8.Pollution degree:3

9.Temperature range:-40°C ~ +200°C

10.Degree of protection:IP67

11.Mating cycles:≥500

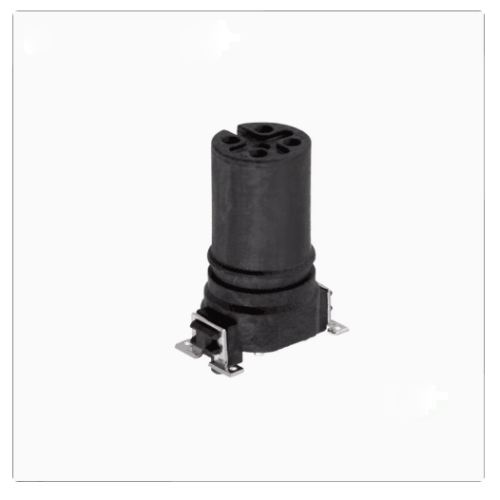

3.product picture
