2.54mm Dual-in-line Socket Straight DIP Type Stamped

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN

Product Description

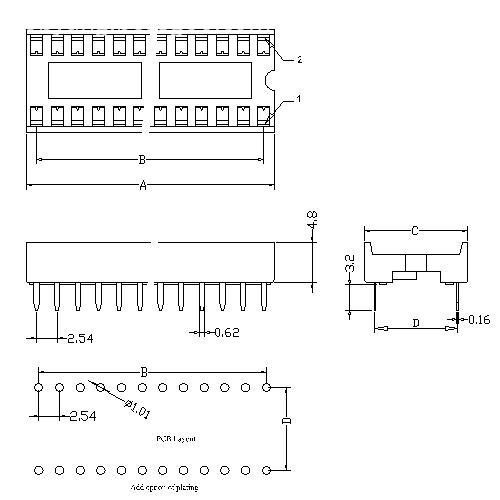

2.54mm Dual-in-line Socket Straight DIP Type Stamped connector.

Specifications:
Current Rating: 1.0Amp
Contact Resistance: 20MΩ max
Dielectric Strength: Min 1000 V RMS
Mechanical Life: Min 100 cycles
Insulation Resistance: 1000MΩ Min
Operating Temperature: -55°C to +125°C
Contact: Bronze,Tin plating
Contact Plating: Au or Sn Over Ni
Insulator Material: PPS+30%GF UL 94V-0

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

2.54mm Pitch Dual-in-line , Socket Straight DIP Type , Electronic Application Connector
