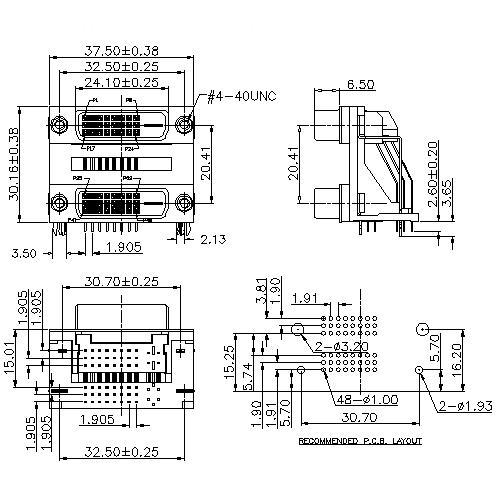

DVI 24+1 Female Dual Port Angle DIP Type

In addition to supporting the new interactive digital video system (DVI) standard, the DVI connector complies with existing industry standards, including VGA, DFP, and P&D standards, and supports single analog input, single digital input, and digital/analog integrated inputs. Video features. It has a long life cycle and can be used in the field of mobile devices. The unique mechanical design improves EMI/RFI performance.

Specifications:
Current Rating:               1.5A
Voltage Rating:               40V
Contact Resistance:            30 milliohms MAX
Dielectric Withstanding Voltage:500V AC AT Sea Levol
Insulation Resistance:         1000 Megohms MIN
Operating Temperature:          -20°C  to  +85°C
Contact:                        Brass or Bronze
Housing:                        Temperature Thermoplastics, UL 94V-0
Shell:                          Zinc Alloy/Spcc Nickel Plating All Area
Contact                         Plating: Gold Plating Over Nickel
