1.0mm FPC NON ZIF Vertical Dip Single Contact

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

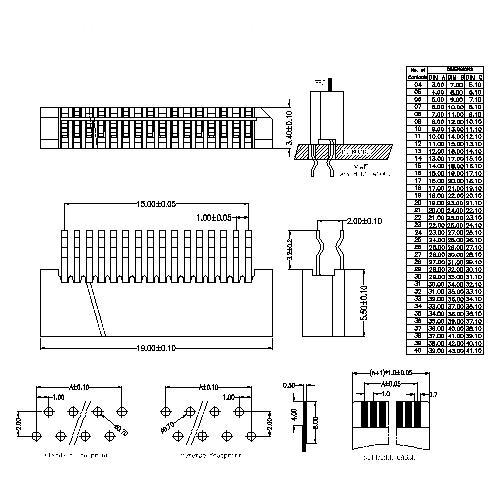

1.0mm FPC NON ZIF Vertical Dip Single contact

Features:

1. can accommodate FPC/FFC cable

2. available in ZIF and non-ZIF styles

3. variety of centerline spacing options

4. available in SMT and T/H PCB termination

5. requires no tooling

6. available in right-angle and vertical mounting orientations

7. right angle-version available with top, bottom or dual contact

8. solder pad and kinked legs for PCB retention

Super-fine 1.0 mm pitch and small-size FFC/FPC connectors with ZIF, non-ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

Easy-on FFC/FPC board connector soldering, FPC LCD connector, FPC connector pinout, 1mm pitch, slider series, right angle SMT bottom contact, 4.8mm height, 4-40 pin FPC connector type, FPC connector full form 40 pin, gold plating, contact tail length 2.5mm.

Specification:

Insulator	Nylon 46, UL94V-0
Contact	Copper Alloy
Plating	Tin plated over nickel
Current rating	0.5 AMP
Dielectric withstanding voltage	500V AC min.
Insulation resistance	800MΩ min.
Contact resistance	20MΩ max.
Voltage rating	AC/DC 50V (200Hz)
Temperature range	-20℃~+85℃

1.0mm FPC, NON ZIF Vertical Dip,Dual contact FPC1.0-XXSTDXXX0
