1.25mm FPC FFC Connector Dip Right angle
  • 1.25mm FPC FFC Connector Dip Right angle
1.25mm FPC FFC Connector Dip Right angle

1.25mm FPC FFC Connector Dip Right angle

  • $500.00
    ≥1000 Bag/Bags
Min. Order:
1000 Bag/Bags
Min. Order:
1000 Bag/Bags
Transportation:
Ocean, Air, Express
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 2000K/month
Supply Ability: 2000K/month
Payment Type: T/T,Paypal
Incoterm: FOB,CIF,EXW,FCA
Certificate: ISO9001
HS Code: 8536909000
Transportation: Ocean,Air,Express
Port: SHENZHEN,
Product Description
Product Description

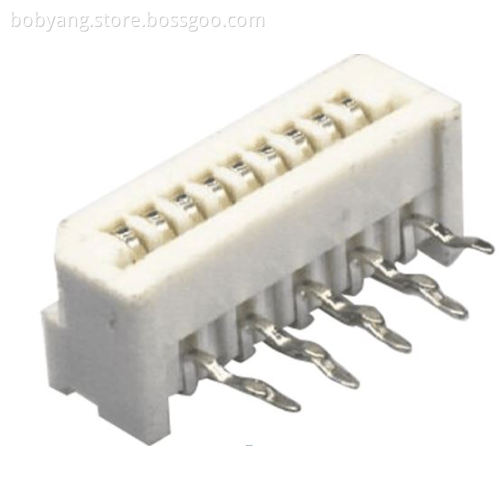

 1.25mm FPC,NON ZIF,Single contact,upper contact, Dip Right angle


Specifications

Model:
FPC1.25-XXRTUXXX0
Manufacturer Antenk
Actuation Type Non ZIF
Connectors FFC & FPC Connectors
Contact Location Single Contact
Contact Material Phosphor Bronze
Contact Plating Tin Plating Over Nickel
LEG Phosphor Bronze,Tin Plating Over Nickel
Current Rating 1A AC/DC
Flammability Rating UL94-V0
Housing  LCP,Color:Natural
Maximum Operating Temperature +85℃
Minimum Operating Temperature - 20℃
Number of Positions/Contacts 4 to 60
Packaging Reel
Pitch 1.25 mm/0.049"
Product Connectors
Product Type FFC & FPC Connectors
Termination Style DIP , Right Angle
Voltage Rating 50V
Contact resistance 20mΩ max.
Insulation resistance 500MΩ min.
Withstanding voltage 500V AC/min

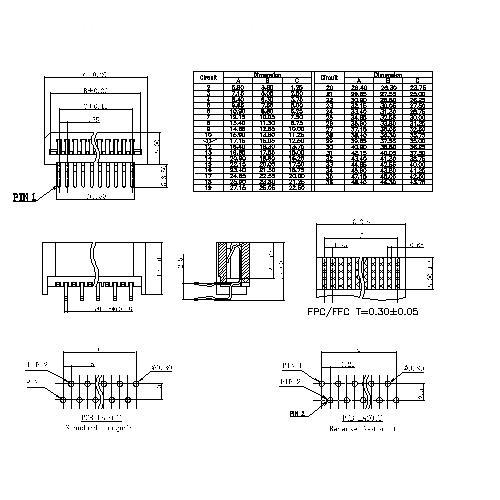

Dimension

1.25mm FPC,NON ZIF,Single contact,upper contact, Dip Right angle FPC1.25-XXRTUXXX0
