SMT Right Angle Dual Contact 1.25 FPC Connector
  • SMT Right Angle Dual Contact 1.25 FPC Connector
SMT Right Angle Dual Contact 1.25 FPC Connector

SMT Right Angle Dual Contact 1.25 FPC Connector

  • $500.00
    ≥1000 Bag/Bags
Min. Order:
1000 Bag/Bags
Min. Order:
1000 Bag/Bags
Transportation:
Ocean, Air, Express
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 2000K/month
Supply Ability: 2000K/month
Payment Type: T/T,Paypal
Incoterm: FOB,CIF,EXW,FCA
Certificate: ISO9001
HS Code: 8536909000
Transportation: Ocean,Air,Express
Port: SHENZHEN,
Product Description
Product Description

1.25mm FPC,NON ZIF,Dual contact with Right angle SMT


Specifications:

Physical
Product Name 1.25mm pitch FPC connector
Color - Resin Black
Pitch 1.25mm (0.049-inch)
Number of Contacts/Pins/Poles 4 to 40
Durability (mating cycles max) 30
Material - Metal Phosphor Bronze
Material - Plating Mating Tin Plating Over Nickel
Material - Plating Termination Tin Plating Over Nicke
Material - Resin LCP,UL94-V0 Color:Black
Orientation Right Angle
Temperature Range - Operating -25°C to +85°C
Termination Interface: Style SMT/SMD
Electrical
Operating Current 1 Amp
Operating Voltage  50V AC/DC at 50Hz
Withstanding Voltage 500V AC/Minute
Contact resistance 30m Ohm Max
Insulator resistance 1000M ohm min.
Application: Widely used in telecommunication equipment,computer,controllers,alarm security fields

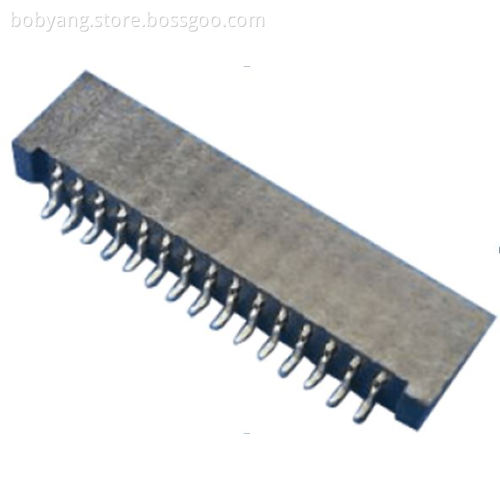

SMT Right Angle Non-ZIF Dual Contact Style 1.25 Pitch 10Pin FPC Connector

Dimension

1.25mm FPC,NON ZIF,Dual contact ,Right angle SMT FPC1.25-XXRMDXX0
