1.25mm FPC Connector NON-ZIF DIP straight Dual Contact

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

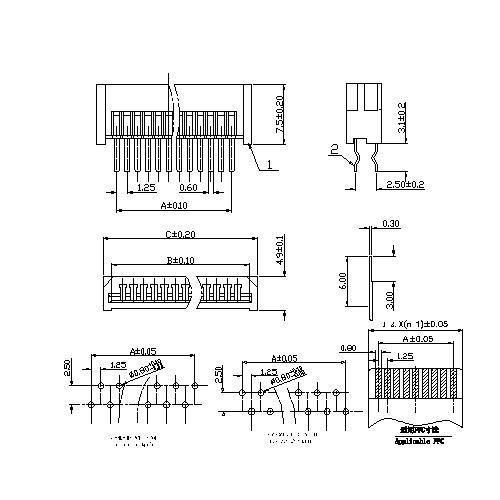

1.25mm (.049") Vertical THR Dual contact Non-ZIF FFC/FPC Connector

Feature:

Dual contact
Available in 3~22 circuits/pins/ways
Phosphor bronze/Tin plated
Applicable FPC and FFC
thickness:0.30mm(.012")
PCB thickness 0.8~1.2mm

Tech Specifications

Model:	FPC1.25-XXSTDXXX1
Manufacturer	Antenk
Actuation Type	Non ZIF
Connectors	FFC & FPC Connectors
Contact Location	Dual Contact
Contact Material	Phosphor Bronze
Contact Plating	Tin Plating Over Nickel
LEG	Phosphor Bronze,Tin Plating Over Nickel
Current Rating	1A AC/DC
Flammability Rating	UL94-V0
Housing	LCP,Color:Black
Maximum Operating Temperature	+85℃
Minimum Operating Temperature	- 20℃
Number of Positions/Contacts	4 to 36
Packaging	Reel
Pitch	1.25 mm
Product	Connectors
Product Type	FFC & FPC Connectors
Termination Style	DIP Straight
Voltage Rating	50V
Contact resistance	20mΩ max.
Insulation resistance	500MΩ min.
Withstanding voltage	500V AC/min
