FFC Connector 0.8mm SMD Horizontal ZIF Bottom Contact

FFC Connector 0.8mm SMD Horizontal ZIF Bottom Contact

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

Shenzhen Antenk Electronics Co., Ltd. launched 4-24 Pin 0.8mm FPC,H=2.5mm, SMT Horizontal W/ZIF,Bottom/Upper contact electronic connectors

0.8mm FPC,H=2.5mm, SMT RIGHT ANGLE ZIF,Bottom contact, With solder Pattern area FPC0.8-XXRMBXX3

Tech Specifications

Description	Product Attribute
Manufacturer	Antenk
Actuation Type	ZIF
Connectors	FFC & FPC Connectors
Contact Location	Bottom Contact
Contact Material	Phosphor Bronze
Contact Plating	Tin Plating Over Nickel
Current Rating	0.5A AC/DC
Flammability Rating	UL94-V0
Housing Material	LCP
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 20 C
Mounting Angle	Right Angle
Mounting Style	Cable
Number of Positions	4-24 Position
Packaging	Reel
Pitch	0.8 mm
Product	Connectors
Product Type	FFC & FPC Connectors
Termination Style	SMD/SMT
Voltage Rating	50V

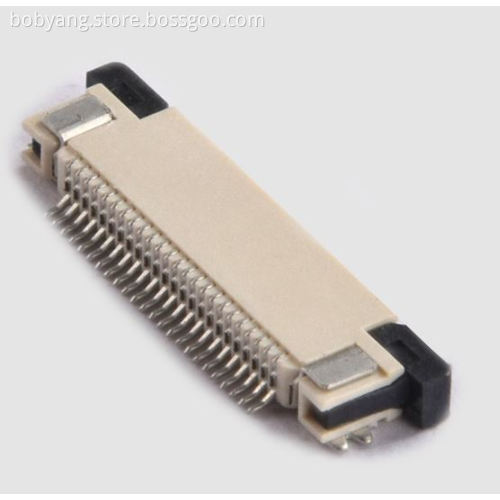

FPC Connector 0.8mm Bottom contact SMT 12 Pin

Dimension

0.8mm FPC,H=2.5mm, SMT RIGHT ANGLE ZIF,Bottom contact, With solder Pattern area FPC0.8-XXRMBXX3

0.8mm pitch FPC W/ZIF Right Angle SMT Type

Feature:

FPC Connectors
Can accommodate FPC/FFC cable
Available in ZIF and non-ZIF styles
Variety of centerline spacing options 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.25mm and 2.54mm)
Available in SMT and T/H PCB termination
Requires no tooling
Available in right-angle and vertical mounting orientations
Right-angle version available with top, bottom, or dual contact
Solder pads and kinked legs for PCB retention

FFC (Flat Flex Cable) /FPC (Flexible Printed Circuits) Connector
Application:
Consumer:Digital camera, home security, game machines, Computers, Notebook PC
Data/Communications: Duplicator, painting instrument, scanner, Copiers, Fax machine, etc. industrial
