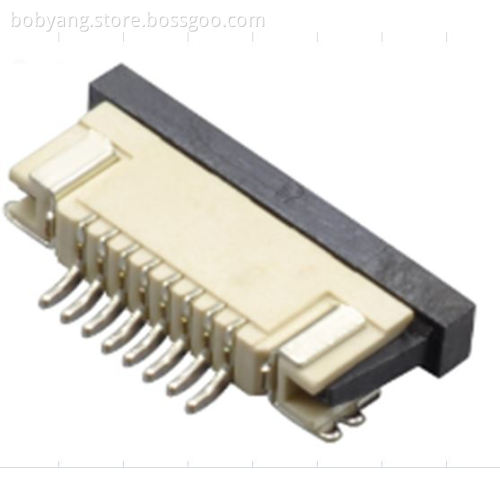

FPC Connector 0.8mm upper contact SMT 8 Pin

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

0.8mm FPC,H=2.0mm, SMT RIGHT ANGLE ZIF,Upper contact,With solder Pattern area

Specifications:

1.Material
1.1: Housing: LCP UL94-V0 Color:Natural.
1.2: Actuator: PPS UL94-V0 Color:Black.
1.3: Contact: Phosphor Bronze
1.4: LEG: Phosphor Bronze
2.Plating
2.1: Contact: Tin Plating Over Nickel.

2.2: LEG: Tin Plating Over Nickel.

3.Rating:

3.1: Operating Voltage: 50V AC/DC.
3.2: Current Rating: 0.5A AC/DC.
3.3: Operating Temperature:-20℃ To +85℃.

FPC Connector 0.8mm upper contact SMT 8 Pin /0.8mm pitch FPC W/ZIF Right Angle SMT Type

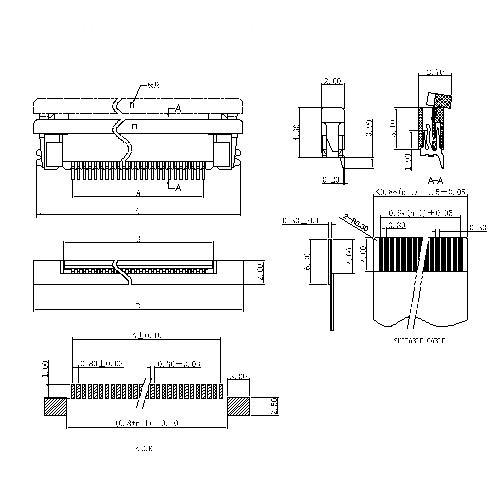

Dimension

0.8mm FPC,H=2.0mm, SMT RIGHT ANGLE ZIF,Upper contact,With solder Pattern area FPC0.8-XXRMUXX1

FFC FPC Connectors
Antenk Supply Super-fine pitch and small-size FFC/FPC Connectors with ZIF, non-ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates

Category:
FFC - FPC Connectors
Pitch: 0.30 - 2.54mm
Orientation: Right-Angle, Vertical
Contact Style: Bottom, Top, Dual
