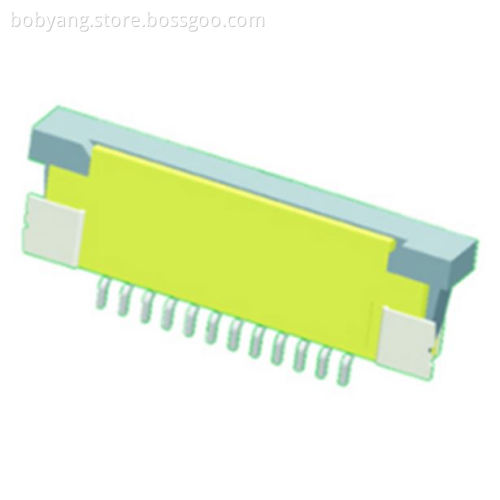

FPC Connector 0.8mm Bottom contact SMT12 Pin

0.8mm Pitch FPC  w/ZIF SMT Right-Angle Bottom contact

Specifications:

  1.Material
      1.1: Housing: LCP UL94-V0 Color:Natural.
      1.2: Actuator: PPS UL94-V0 Color:Black.
      1.3: Contact: Phosphor Bronze
      1.4: LEG: Phosphor Bronze
  2.Plating
      2.1: Contact: Tin Plating Over Nickel.
      2.2: LEG: Tin Plating Over Nickel.
  3.Rating:
      3.1: Operating Voltage: 500V AC/DC.
      3.2: Current Rating: 0.5A AC/DC.
      3.3: Operating Temperature:-20℃ To +85℃.

FPC Connector 0.8mm Bottom contact SMT12 Pin /0.8mm pitch FPC W/ZIF Right Angle SMT Type

Dimension

Low Profile Flexible Printed Circuit
As the market trends towards miniaturization, FPC connectors have been developed to meet the challenges of this expanding market, which demands smaller centerline or pitch spacing, lower profile heights, and lighter interconnect solutions. Antenk's FPC solutions are reliable interconnects that use an actuator to secure the cable termination, and are field terminatable (require no tooling) and are available in centerline spacing of 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.25mm and 2.54mm, and incorporate a low profile height and light-weight features.

Antenk's FFC FPC Connectors
Antenk Supply Super-fine pitch and small-size FFC/FPC Connectors with ZIF, non-ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates

Category:FFC - FPC Connectors
Pitch:0.20 - 2.00mm
Orientation:Right-Angle, Vertical
Contact Style:Bottom, Top, Dual
