0.5mm FFC/FPC Dual contact side back flip connector

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

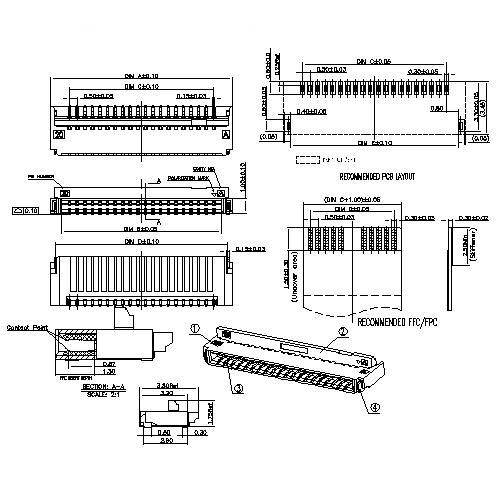

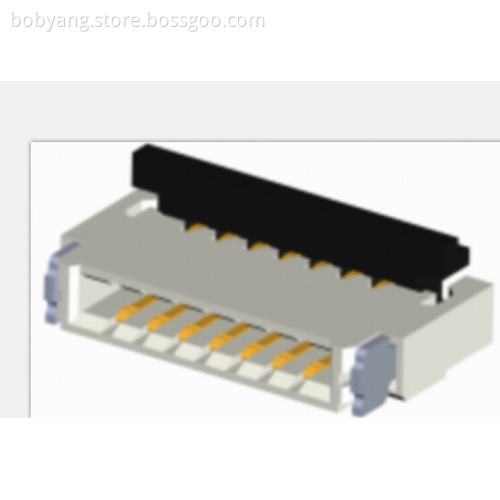

0.5mm FFC/FPC Dual contact side back flip type connector (H=1mm)

Specifications:
1.Current rating:0.5a/pin
2.Voltage rating:50V(AC/DC)
3.Contact resistance;Initial value 100m OHM Max
4.Insulation Resistance:500Mohm min
5.Dielectric withstanding voltage:250v ac for 1minute
6.Durability:20 times min
7.Operating temperature:-40°C to +85°C
OPERATING HUMIDITY RANGE:20% TO 85%
8.Unspecified:0=Nonsense
Unspecified:0=Nonsense

0.5mm FPC,H=1.0mm Dual contact side back flip type connector FPC0.5-XXRMXX13
