0.5mm FPC Back-flip SMT H=2.6mm Connector

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

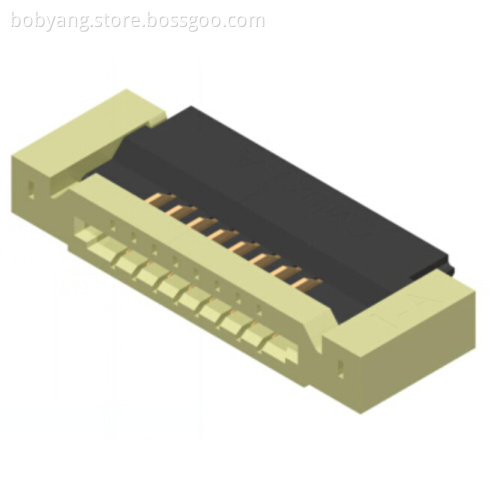

0.5mm FPC Back-flip SMT H=2.6mm Connector

1.UL-marked products conform to REACH and ROHS regulations
2.Rich selection of connector,terminal,PIN,female header, automotive terminals and more
3.Sample take up to 3 days,but can be finished with one day in urgent cases
4. Specialized in providing connector solutions for customers and 5.providing customized services.
6.Custom orders welcome

Specifications:

Current rating : 0.5A 50V AC /DC
Dielectric Withstanding Voltage:150 V AC for one minute
Contact Resistance : ＜50mΩ
Insulation Resistance : ＞500MΩ
Operating Temperature : -40℃~105℃

Material:
Body: High temperature plastic UL94V-0,Color:Nature
Cover: High temperature plastic UL94V-0, Color:Black

Contact: Phosphor Bronze
Fixed tab: Btass with tin plated
