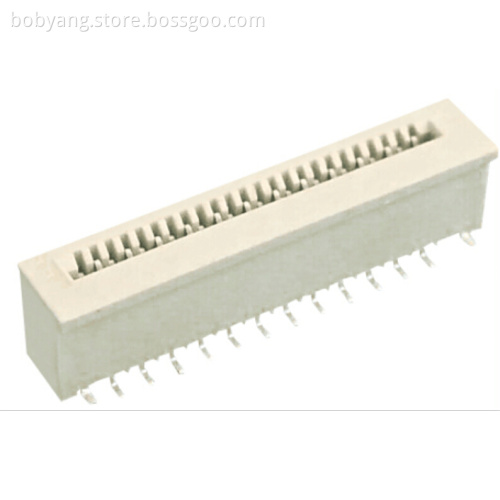

0.5mm FPC SMTStraight Bottom Contact Connector

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

0.5mm FPC,SMT Straight,Bottom Contact

SPECIFICATIONS
Poles:4~40
Voltage rating:AC,DC,50V(50HZ)
Current rating0.4A AC ,DC
Withstand voltage:200V AC/Minute
Working temperature:-25℃+85℃
Insulation resistance:≥100MΩ
Contact resistance:≤0.02Ω
Material:PA46,UL94V-0
Material:phosphor copper
PACKAGE: Pipe package/winding package

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

0.5mm FPC SMT Connector , 0.5mm FPC Bottom Contact Connector SMT , 0.5mm Pitch FPC Connector SMT
