0.5mm FPC Back flip type connector

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

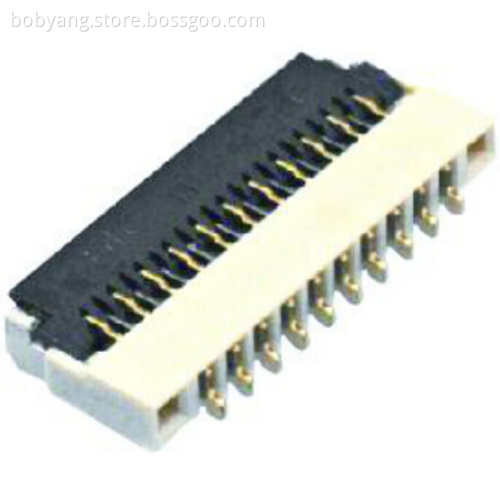

0.5mm FPC H=2.0mm Back flip type connector

FPC connectors provided by Antenk are narrow-pitches and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission , and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF or inexpensive type of Non-ZIF and etc. are provided for achieving customers' requests.

SPECIFICATIONS:
Current rating : 0.5A 50V AC /DC
Dielectric Withstanding Voltage :
150 V AC for one minute
Contact Resistance : ＜50mΩ
Insulation Resistance : ＞500MΩ
Operating Temperature : -40℃~105℃
Material:
Body: High temperature plastic
UL 94V-0 Color Nature
Cover: High temperature plastic
UL 94V-0 Color Black
Contact: Phosphor Bronze
Stator: Brass with tin plated

0.5mm FPC H=2.0mm,Back flip type connector FPC0.5-XXRMXX8

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

0.5mm FPC Back Flip Type , 0.5mm FPC Back Flip Connector , 0.5mm Pitch FPC Back Flip
