0.5mm FPC SMT Right angle bottom contact type

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

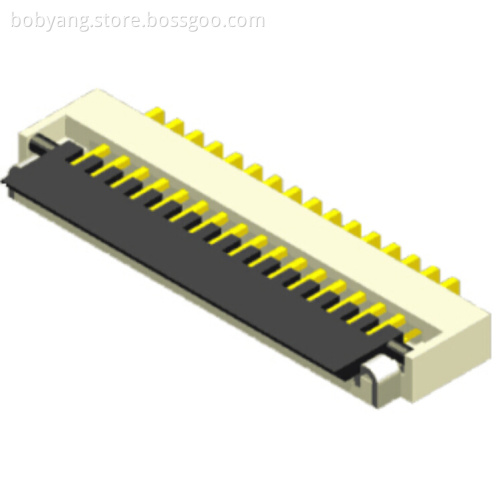

0.5mm FPC,H=1.0 SMT right angle bottom contact hinged cover type(easy on)

Antenk offers Flat Flex Connectors (FFC) that include a wide variety of high-density connectors designed for automated assembly. Flexible printed cables (FPC) are ideal where small centerline spacing makes larger wire-to-board solutions impractical.

SPECIFICATIONS:
1.Material:
1.1 Housing:High-Temp Plastic(UL94V-0),White
1.2 Cover:High-Temp Plastic,(UL94V-0),Brown
1.3 Terminal:Copper Alloy
1.4 PEG:Copper Alloy
2.Rating:
3.1 Operating voltage:50V AC/DC
3.2 Current rating:0.4A AC/DC
3.3 Withstanding Voltage:250V AC/Minute
3.4 Contact Resistance:30MΩ Maximum
3.5 Insulation Resistance:500MΩ Minimum
3.6 Operating Temperature:-55°C To +85°C

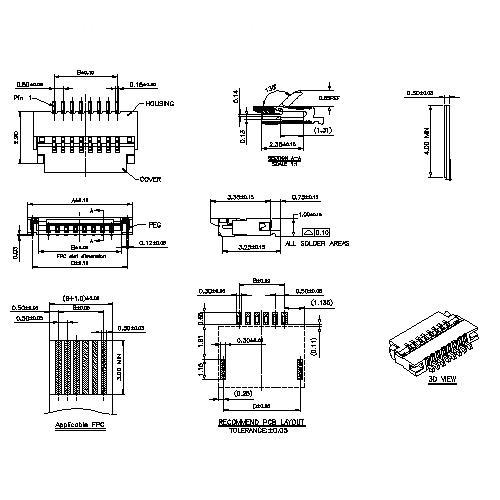

0.5mm FPC,H=1.0 SMT RIGHT ANGLE BOTTOM CONTACT HINGED COVER TYPE(EASY ON) FPC0.5-XXRMXXX6
