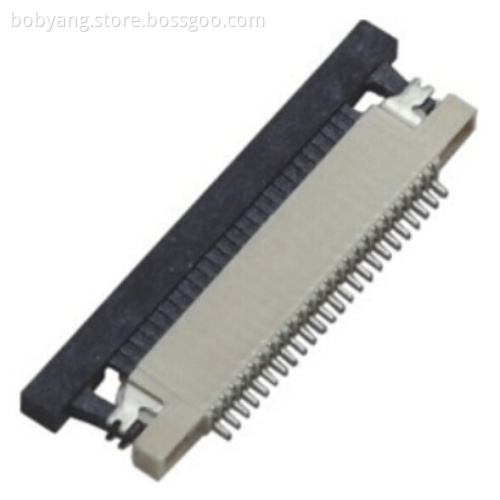

0.5mm FPC SMT Right angle ZIF Upper(Bottom) Contact

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

0.5mm FPC,H=1.2,SMT Right angle ZIF,Upper(Bottom) Contact

The FPC connector is a flexible flat cable connector. It is a new type of data cable that is pressed together with a high-tech automated equipment line using PET insulation and extremely thin tinned flat copper wire. It has a soft, freely bendable fold. Thin thickness, small size, simple connection, easy disassembly, easy to solve electromagnetic shielding

SPECIFICATIONS:
1.Material:
1.1 Housing:Thermoplastic(UL94V-0)
1.2 Slider:Thermoplastic(UL94V-0)
1.3 Terminal:Phosphor Bronze,Tin-Plated
1.4 Fitting Nail:Bass,Tin-Plated
2.Rating:
3.1 Operating voltage:50V AC/DC
3.2 Current rating:0.4A AC/DC
3.3 Withstanding Voltage:200V AC/Minute
3.4 Contact Resistance:20MΩ Maximum
3.5 Insulation Resistance:500MΩ Minimum
3.6 Operating Temperature:-25°C To +85°C

0.5mm FPC,H=1.2,SMT Right angle ZIF,Upper(Bottom) Contact FPC0.5-XXRMUXX0

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

0.5mm FPC Connector , 0.5mm FPC Connector SMT , 0.5mm FPC Right Angle ZIF
