2.54mm Pitch FPC upper contact Type

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

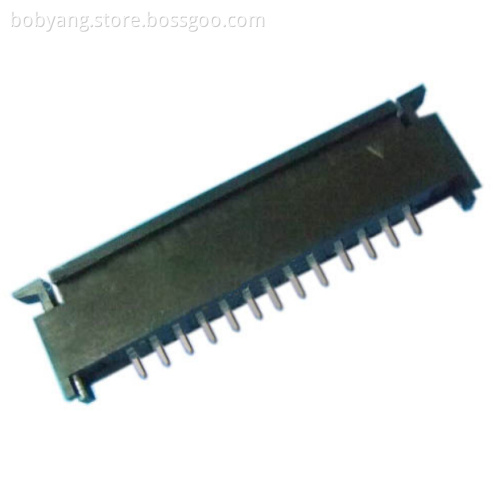

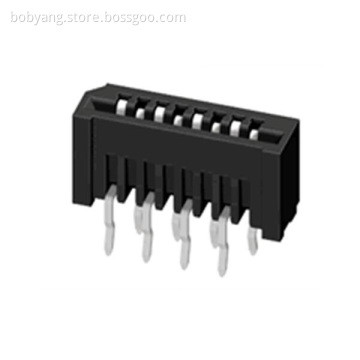

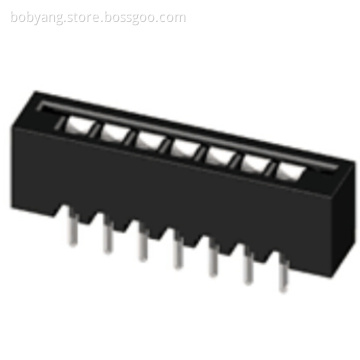

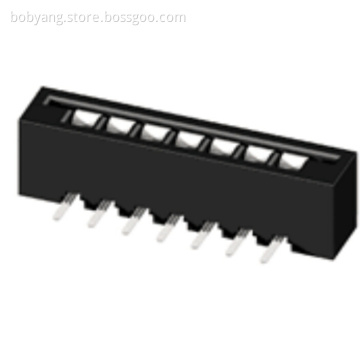

Shenzhen Antenk Electronics Co., Ltd. launched a 2.54mm Pitch FPC Z.I.F upper contact Type electronic products

The FFC connector is a flexible flat cable connector. It is a new type of data cable that is pressed together with a high-tech automated equipment line using PET insulation and extremely thin tinned flat copper wire. It has a soft, freely bendable fold. The utility model has the advantages of thin thickness, small volume, simple connection, convenient disassembly and easy solution of electromagnetic shielding.

Specifications:
Material And Finish:
Insulator:Nylon66 UL94V-0
Contact:Phosphor Bronze, Tin plated

Rating:
Current Rating:1.0 Amp
Voltage Rating:200V AC/DC
Operating Temperature Range:-25°~+105°C

Electrical:
Contact resistance:20m Ohm Max
Insulator resistance:500M ohm min.
Withstanding Voltage:500V AC/Minute

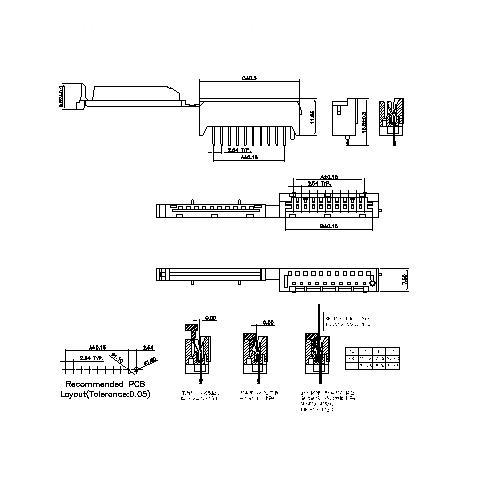

2.54mm Pitch FPC Z.I.F upper contact Type FPC2.54-XXSTUXX0
