2.54mm Slot Straight DIP Socket Connectors

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

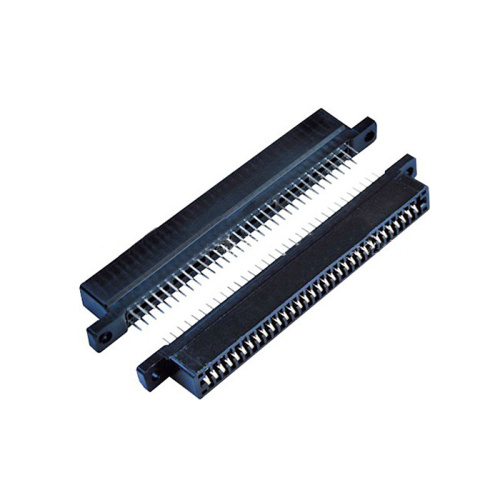

2.54mm Slot Straight DIP Connectors With Ear

Specifications:
1.CURRENT RATING:3AMP
2.DIELECTRIC WITHSTANDING VOLTAGE:1000V AC RMS 60Hz. 1MIN
3.CONTACT RESISTANCE:20 MILLIOHMS MAX
4.INSULATION RESISTANCE:5000 MEGOHMS MIN.At 500V DC
5.OPERATION TEMPERATURE:-55°C TO +105°C
6.INSERTION FORCE:0.4Kgf MAX.Per Pair
Withdrawal Force:0.25Kgf Mac.Per Pair
Insulator:PBT(UL94V-0)
CONTACT:BRASS OF PHOSPHOR BRONZE GOLD PLATED ON CONTACT AREA

TIN PLATED ON SOLDER TAILS,OVER NICKEL

ECCS-XBBS0SB02 2.54MM Slot Straight DIP Connectors With Ear Connectors

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

2.54mm Slot Straight DIP Connectors , 2.54mm Slot DIP Connectors With Ear
